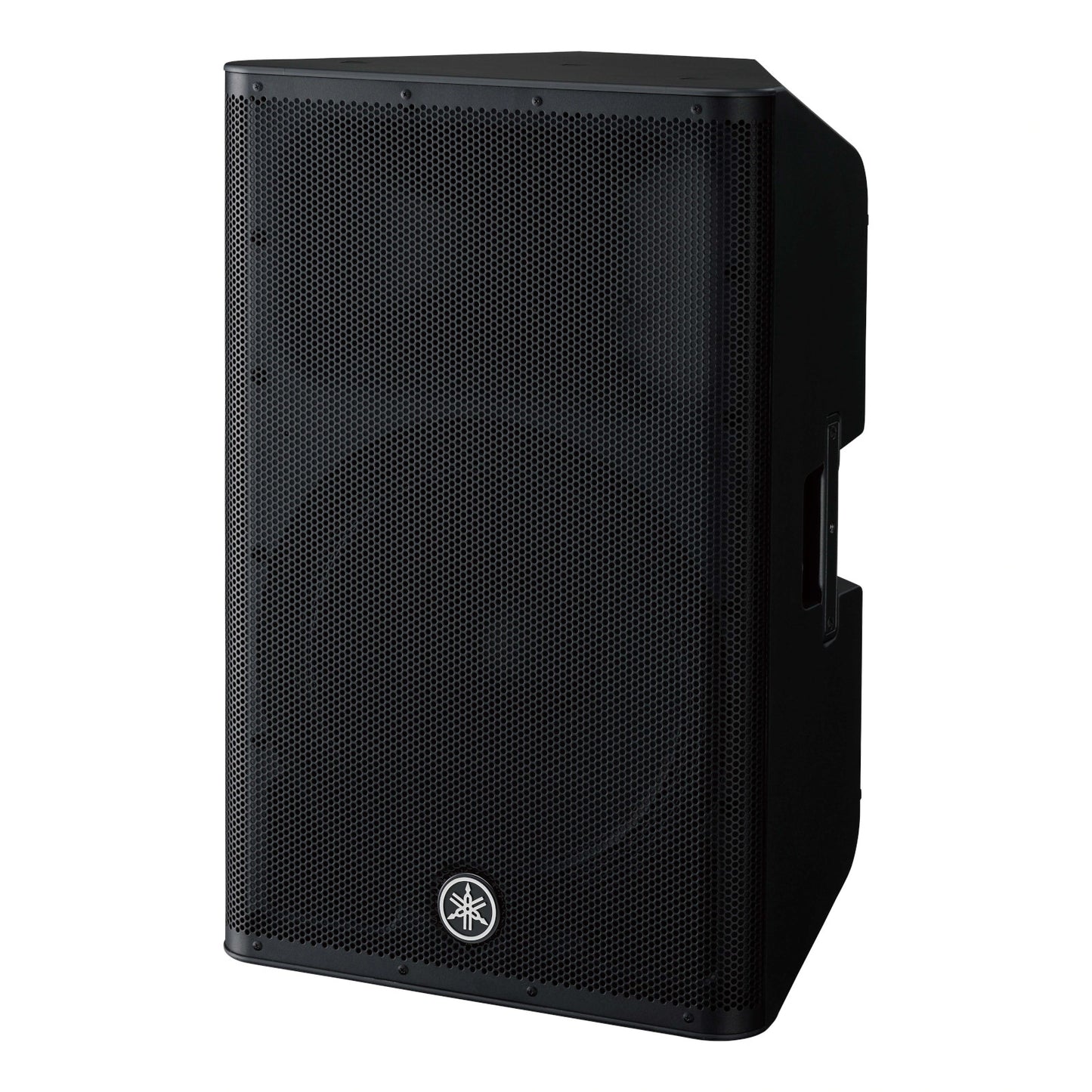

Yamaha DXR15mkII 15-Inch Powered Speaker
Yamaha DXR15mkII 15-Inch Powered Speaker
SoundPro Item: 43190 | Part Number: DXR15MKII
Usually ships in 5-7 business days
- 15" powered loudspeaker with 1100W Class-D amplifier
- Achieves high SPL output with remarkable clarity throughout its frequency response
- 1.75" neodymium high-frequency compression driver and high-output 15" woofer which combine for a wide frequency response with powerful bass
- Frequency Range: 49Hz - 20kHz
- Precision 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable and compact ABS enclosure
- Symmetrical Design for mirror-mode floor monitoring
Yamaha’s cutting-edge technologies and a powerful Class-D amplifier and woofer equip the DXR15mkII speaker to achieve up to 134dB SPL and full bandwidth performance.
Part of the upgraded and feature-packed DXR Series, this 15” powered loudspeaker boasts D-CONTOUR functionality that supports deep lows, virtually providing the effects of a subwoofer.
- Speaker type15" 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB)49Hz - 20kHz
- Nominal Coverage
- H: 90°
- V: 60°
- Components
- LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
- HF: Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
- CrossoverFIR-X tuning™ (linear phase FIR filter)
- Output powerDynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
- Maximum output level (1m; on axis)134dB SPL
- I/O connectorsINPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
- ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFF
- Power requirements100V - 240V, 50Hz/60Hz
- Power consumption110W
- Flying and mounting hardwareTop x2, Rear x1 (Fits for M10 x 18mm eyebolts)
- Pole socket35mm with 2-way features (0 or 7 degrees)
- Dimensions (WxHxD)17 4/8 x 27 4/8 x 15" (445x700x380mm)
- Net Weight48.1lbs (21.8kg)
- Material/FinishMaterial: ABS (Matte Finish, Black)
