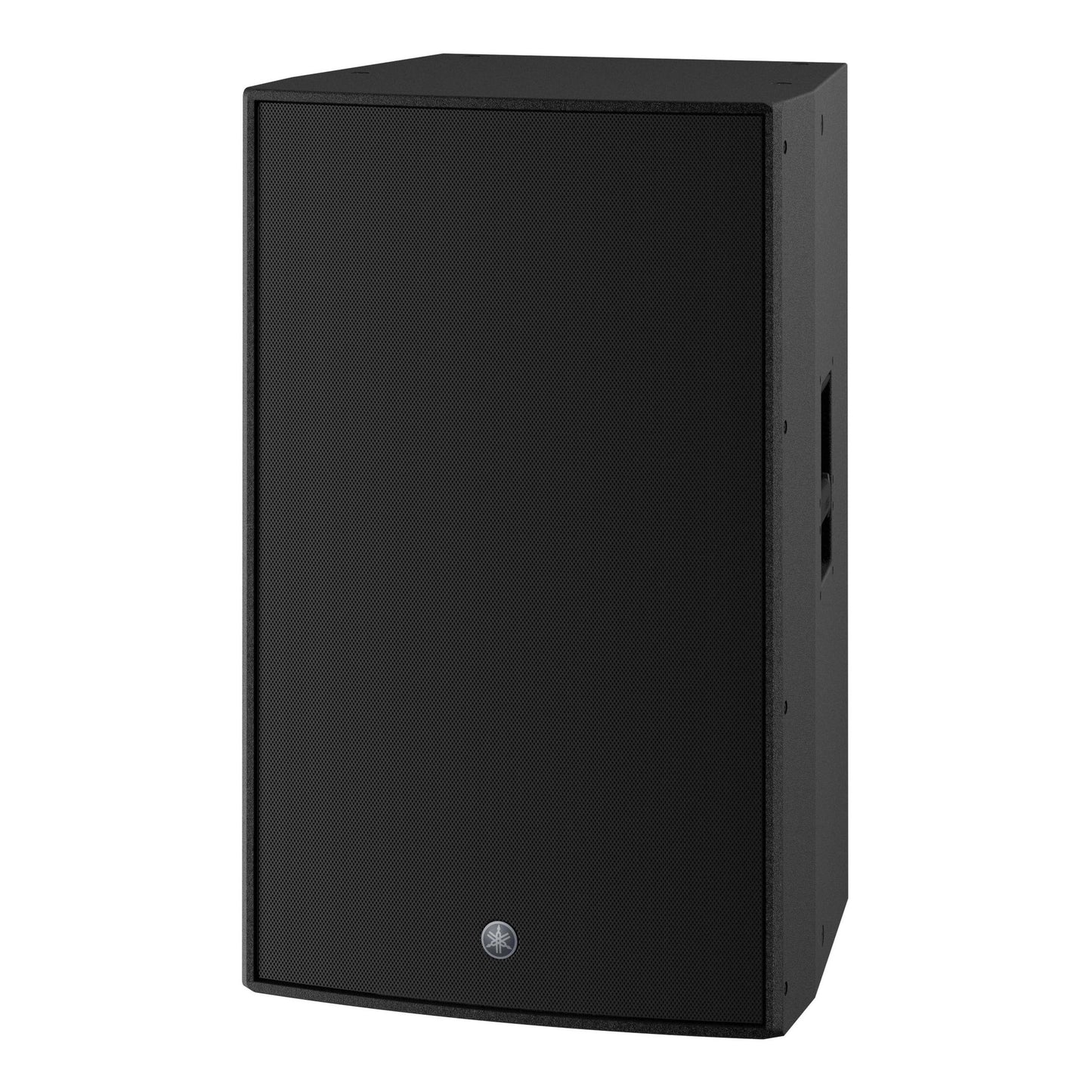

Yamaha DZR315 15-Inch 3-Way Powered Speaker
Yamaha DZR315 15-Inch 3-Way Powered Speaker
SoundPro Item: 34552 | Part Number: DZR315
Usually ships in 5-7 business days
- 15" 3-way bi-amped powered loudspeaker for use in a FOH main PA
- Can produce up to 143dB SPL with supreme clarity
- Includes rigging points for vertical or horizontal mounting in suspended applications
- Advanced FIR-X Tuning
- D-Contour
- DSP protection functions for maximum output and component longevity
- Dante-equipped professional SR loudspeakers
- Power in flexibility with rotatable coverage angle
The most powerful model in Yamaha’s DZR Series the DZR315 is a 15”, 3-way bi-amped powered loudspeaker ideal for use in a Front-of-House (FOH) main PA.
This speaker can produce up to 143dB SPL with supreme clarity.
Also included with the DZR315 15-Inch 3-Way Powered Speaker are integrated M10 rigging points for suspended applications.
- Speaker Type3-way, bi-amped powered speaker, bass-reflex
- Frequency Range (-10dB)31Hz - 20,000Hz
- Coverage Area (HxV)75° x 50°
- Components
- LF: 15" cone, 3" voice coil, neodymium magnet
- MF: 8" cone, 1.5" voice coil, ferrite magnet
- HF: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
- Crossover700Hz (FIR-X), 2.5kHz (passive)
- Sampling Frequency Rate (internal)96kHz and FIR Filter
- A/D D/A Converters96kHz AD/DA
- Max. Output Level (1m; on axis)143 dB SPL
- Power Rating
- Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
- Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
- Continuous: 950W (LF: 850W, MF/HF: 100W)
- I/O Connectors
- Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x1 (V-Lock)
- Amplifier ClassClass-D
- Coolingfan cooling, variable speeds
- Power Consumption45W (idle), 150W (1/8)
- Handlealuminum die-cast, side x2
- RiggingM10 x 16
- Dimensions (WxHxD)21.6x35.3x20.5"
- Weight91.7 lbs
