Yamaha MS101-4 Powered Studio Monitor
Yamaha MS101-4 Powered Studio Monitor
SoundPro Item: 131170 | Part Number: MS101-4
In stock and ready to ship
- 30W of amplifier power provides clean, high output sound
- Redesigned enclosure for an even lower profile
- Combo Input jack accepts both XLR and 1/4" connectors
- Directly mountable on Euro microphone stands (optional mic stand adaptor BMS-10A is available for adjusting tilt angle)
13The standard model in our range of desktop utiility powered monitors, the MS101-4 offers portability in a simple, compact design, with comprehensive functions for outstanding usability. The MS101-4 comes with a 3/8-16 threaded female mounting for direct attachment to a Euro microphone stand. Optional accessories can also be added for use in a wide range of applications.
With the controls (power switch, volume and tone controls) and the combo jack input on the lower front panel, you'll find the MS101-4 is easy to operate. The sturdy metal grill offers complete protection for the four-inch cone driver, while the rear panel is equipped with one stereo mini and a TRS Phone input connector, along with an output jack. An AC inlet for a removeable power cord provides excellent portability. The bass reflex port is also located on the rear surface, resulting in a more compact chassis.
- Speaker type Full range Powered Speaker, Bass-reflex Type
- Frequency range (-10dB) 77 Hz–20 kHz
- Maximum output level (1m; on axis) 115 dB SPL *1
- Components (LF-HF) 4" Cone, 1" Voice coil, Ferrite magnet
- Dimensions (WxHxD) 142x196x187mm
- Net weight 2.1 kg (4.6 lbs)

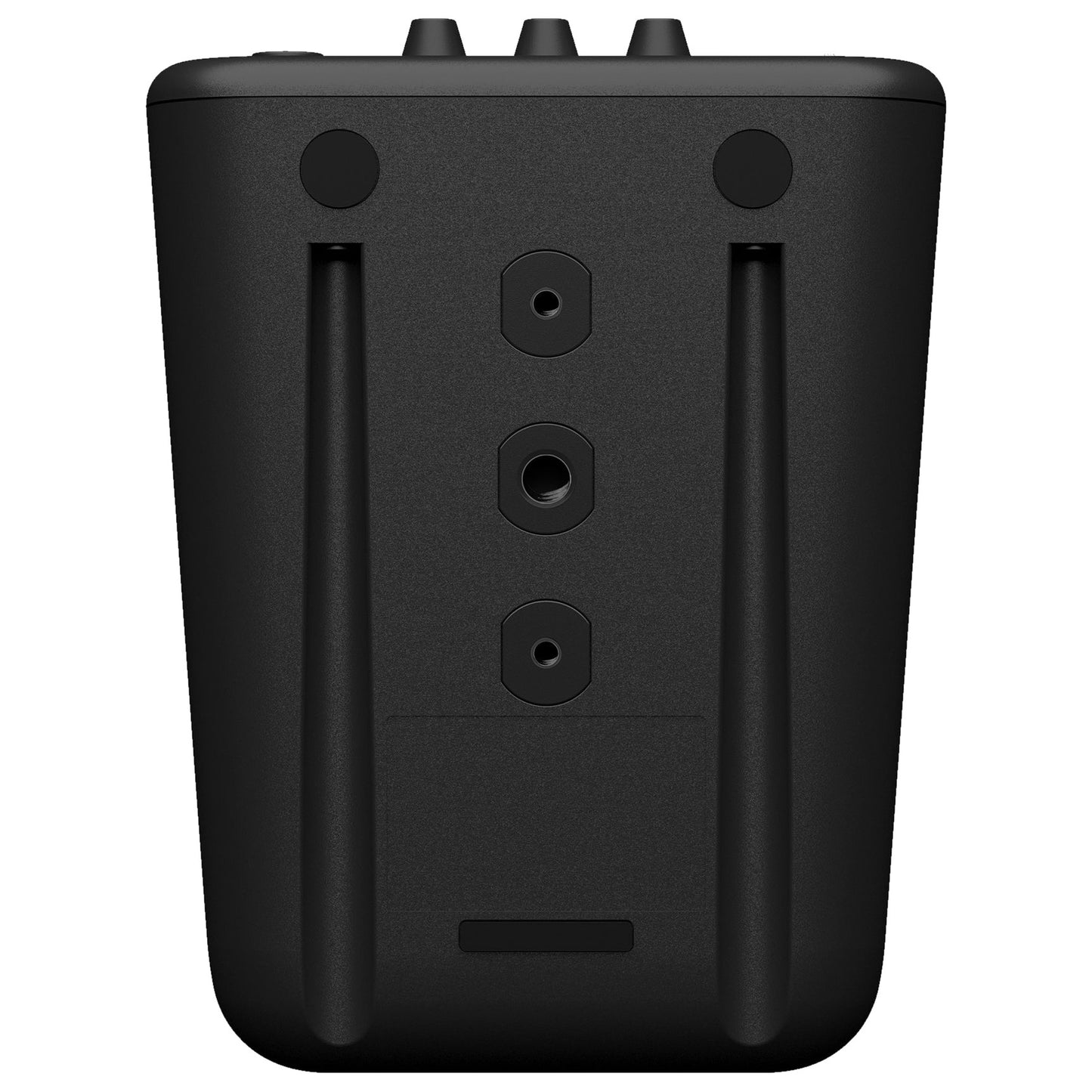

- Flying and mounting hardware Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw)
- Amplifier class Class-D
- Power rating
- Dynamic: 30 W
- Continuous: 20 W
- Cooling Natural cooling (no fan)
- I/O Connectors
- Mic Input: [Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
- Line Out: 1 x Phone (TRS)
- AC: 1 x AC inlet
- Input impedance [Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
- Input sensitivity [Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
- Input Level [Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
- Others Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
- Indicators POWER (Green LED)
- Power consumption 1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
- Power requirements 100 V - 240 V, 50/60 Hz
- Options Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
