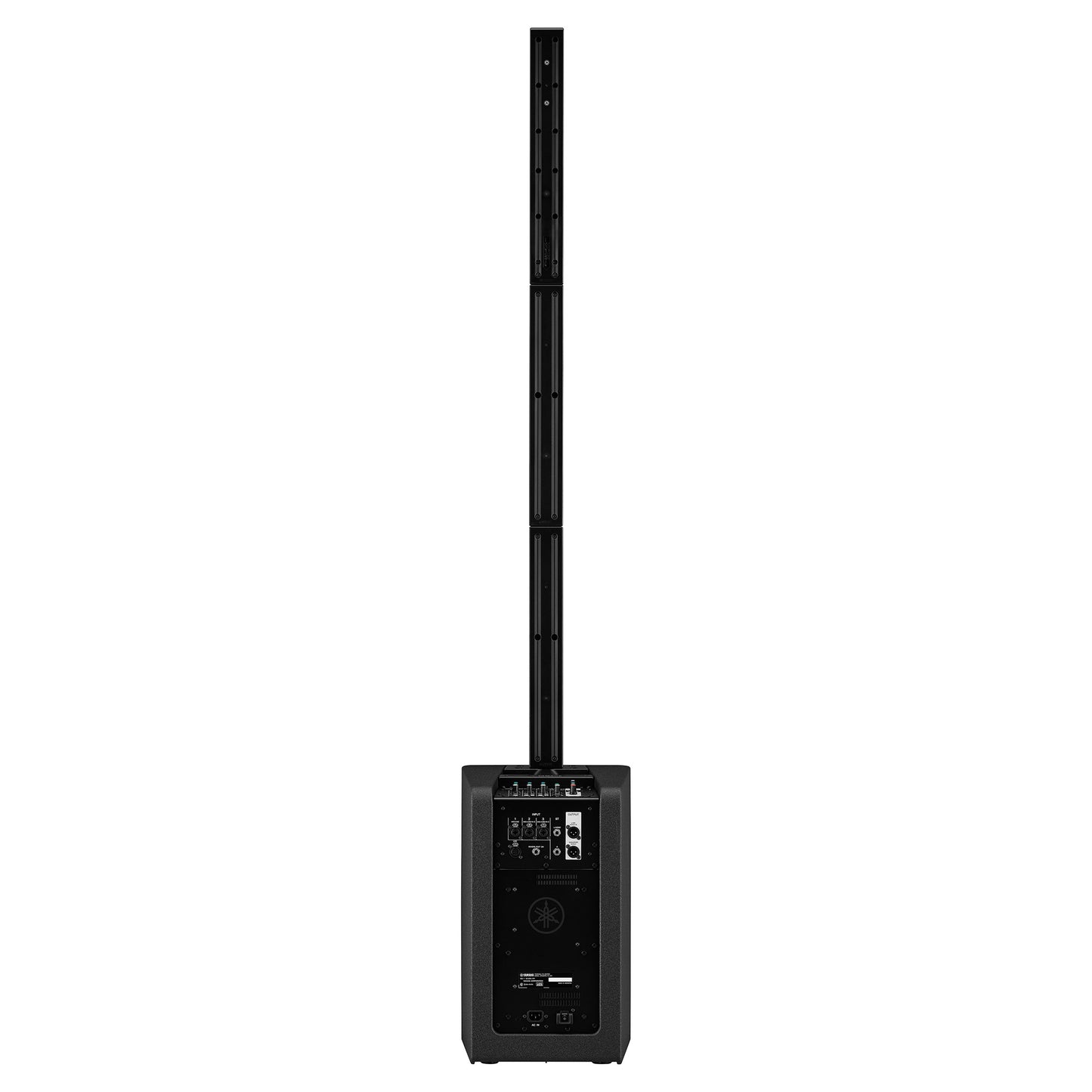

Yamaha STAGEPAS 1K MKII Portable PA System
Yamaha STAGEPAS 1K MKII Portable PA System
SoundPro Item: 134144 | Part Number: STAGEPAS 1K MKII
In stock and ready to ship
- Compact yet powerful all-in-one Portable PA System
- Ideal for achieving professional polish from a wide range of mobile audio applications
- Great for musicians, indie performers, public speakers, special event announcers, and more
- J-curve slim line array
- Class-leading 12" subwoofer
- 1100W amplifier
- Professional functionality with simple operation
- Digital mixer with versatile input
- Professional control with a single knob
- Priority Ducker
- STAGEPAS Controller
- Superior utility and portability
- Simple setup
- High-grade polyurea coating
- System can be easily expanded
Set up your sound wherever you need it with the STAGEPAS 1K MKII Portable PA System from Yamaha.
This second-generation PA system is capable of handling even higher sound pressure levels (SPLs) and adds more flexibility to its remote functionality.
Offering an all-in-one system solution, it’s ideal for achieving professional polish from a wide range of mobile audio applications, including aspiring musicians, indie performers, public speakers, special event announcers, and many more.
- Typepowered subwoofer with a line array speaker
- Mixing Capability
- Mixing Channels: 5 (Mono x3 + Stereo x1)
- Input Channel Functions: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
- Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)
- I/O
- Inputs: Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
- Outputs: Link out x1, Monitior out x1
- Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
- Control and Others: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
- On-Board Processors, DSPSPX digital reverb (4 program, parameter control)
- Speaker Type
- Powered subwoofer: Bass-reflex type
- Line array speaker: Enclosed
- Frequency Range (-10dB)37Hz - 20,000Hz
- Coverage Area (HxV)170° x 30°
- Crossover240 Hz
- Max. Output Level (1m; on axis)125 dB SPL
- Components
- LF, Powered subwoofer: 12” (30 cm) Cone
- HF, Line array speaker: 1.5” (3.8 cm) Cone x 10
- Amplifier ClassClass D
- Power Rating, Dynamic1100W
- Power Consumption
- Idle: 25W
- 1/8 Power: 91W
- Power Requirements100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz (depending on area of purchase)
- Handleon top of powered subwoofer
- Dimensions
- System: 13.15" x 78.74" x 16.46" (max)
- Line Array Speaker: 2.64" x 22.91" x 3.39"
- Powered Subwoofer: 13.15" x 19.69" x 16.46"
- Spacer: 2.64" x 21.85" x 3.39" (each)
- Weight
- System: 50.71 pounds
- Line Array Speaker: 3.97 pounds
- Powered Subwoofer: 44.09
- Spacer: 1.32 pounds (each)
