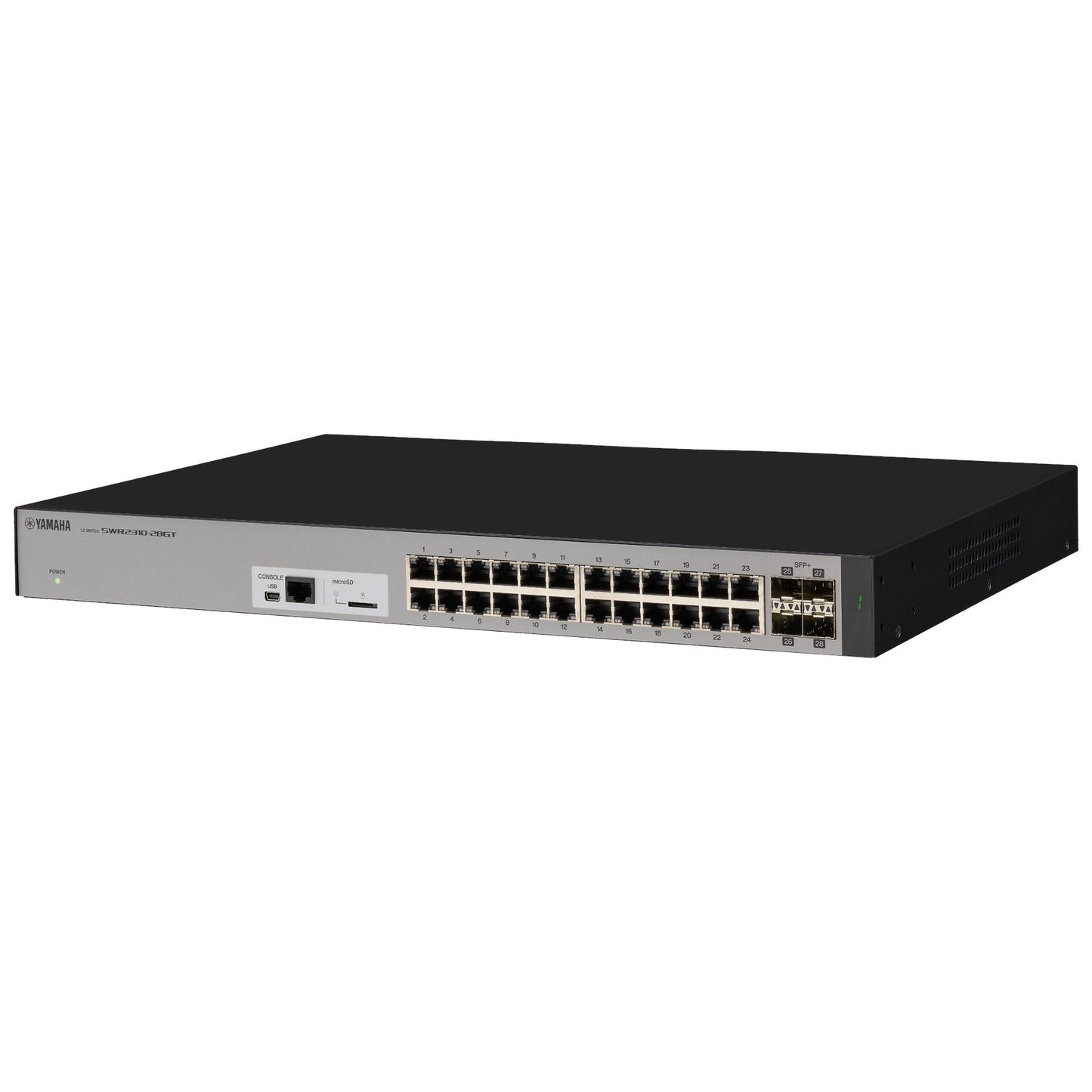

  • Yamaha SWR2310-28GT 28-Port L2 Intelligent Network Switch left
1 4

Yamaha SWR2310-28GT 28-Port L2 Intelligent Network Switch

Yamaha SWR2310-28GT 28-Port L2 Intelligent Network Switch

SoundPro Item: 79423 | Part Number: SWR2310-28GT

$1,499.00
$1,574.00 $1,499.00
Your Price Sold out
MSRP: $1,574.00 | MAP: $1,499.00

Usually ships in 5-7 business days

  • Available ports: 24 LAN ports and 4 SFP+ slots
  • In-build RADIUS server for advanced security management
  • Yamaha LAN Monitor supported
Log in or register for YOUR best price

The SWR2310-28GT from Yamaha is an L2 intelligent RJ45 switch with 28 ports.

The Yamaha SWR switch lineup, featuring high-performance L2 switches for fixed installations, has been expanded to provide a wider range of models for a wider range of applications. In addition to VLAN functionality, the new SWR2310-28GT and SWR2310-18GT offer high port counts and features such as 10G uplink ports for long-distance transmission of multichannel 96 kHz data, making them ideal choices for safe, stable backbone operation in large-scale systems. As with other SWR/SWP switches, Yamaha LAN Monitor software provides clear visual system status monitoring that makes Dante system setup easy.

View full details
  • LAN ports
    • Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T)
    • Number of ports: 24
    • Communication mode: Auto negotiation
    • Connector type: RJ-45
    • Polarity: Automatic detection of straight/cross, or fixed at straight
  • SFP+ ports
    • Standard: IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR)
    • Number of ports: 4
  • Console ports
    • Standard: RS-232C, USB 2.0
    • Connector type: RJ-45, USB mini-B (5-pin)
    • Data transmission speed: 9600 bit/s
  • microSD slot
    • Standard: microSD/microSDHC (microSDXC is not supported)
    • File System: FAT/FAT32
  • IndicatorsPOWER, microSD, STACK ID, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED)
  • MAC addressIndicated in product label on top panel of unit
  • Operating environmentAmbient temperature: 0–50 °C, Ambient humidity 15–80% (non-condensing)
  • Storage environmentAmbient temperature: -20–60 °C, Ambient humidity 10–90% (non-condensing)
  • Power supply voltage, frequencyAC100 – 240V, 50/60 Hz
  • Maximum power consumption25.2W
  • Dimensions (WxHxD) 440x44x300mm
  • Weight3.9kg
