• Yamaha TF1 16-Channel Digital Mixing Console
1 1

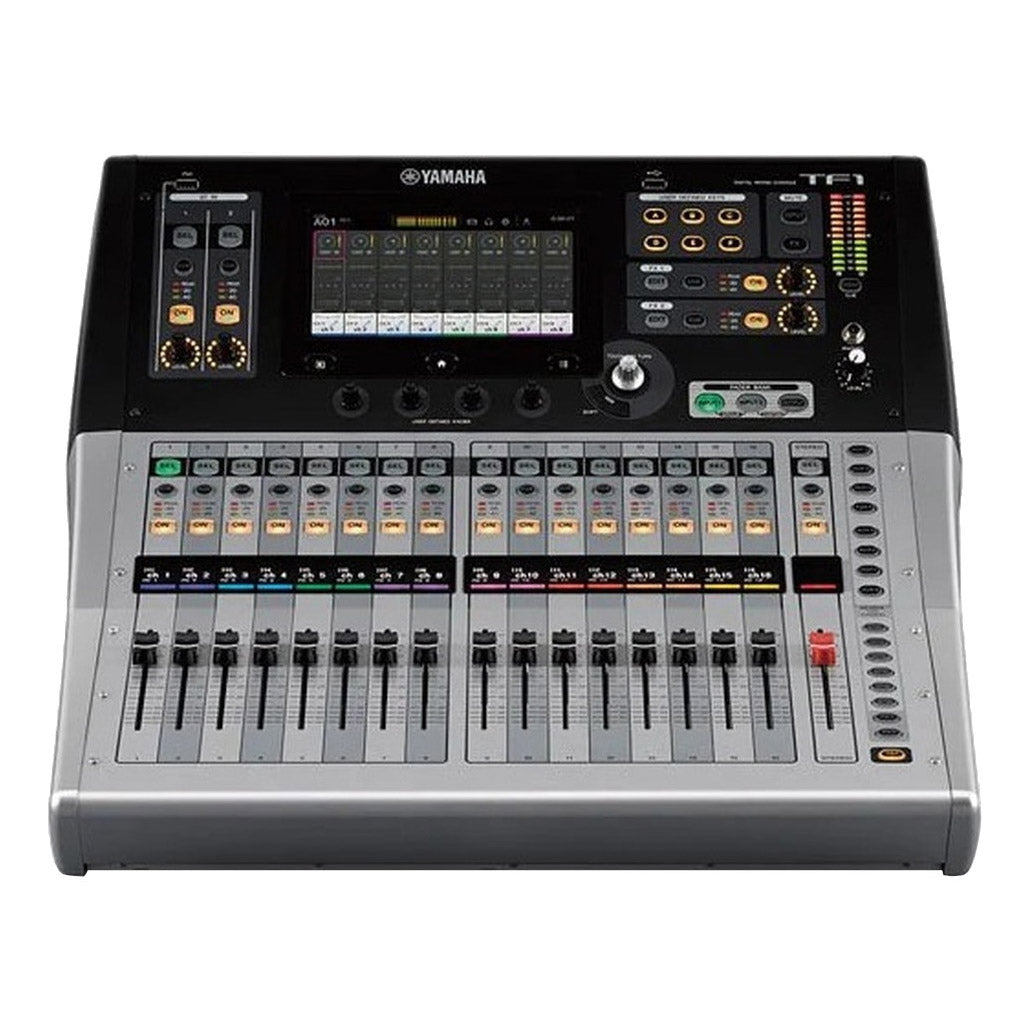

Yamaha TF1 16-Channel Digital Mixing Console

Yamaha TF1 16-Channel Digital Mixing Console

SoundPro Item: 26883 | Part Number: TF1-CA

$2,499.99
$2,936.00 $2,499.99
Your Price Sold out
MSRP: $2,936.00 | MAP: $2,499.99

In stock and ready to ship

  • 17 motor faders (16 channels + 1 master)
  • 8 DCA groups with Roll-out
  • 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
  • 16 analog XLR outputs
  • 34x34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card
  • Touch operation for intimate control
  • 1-knob COMP™ and 1-knob EQ™
  • GainFinder™ supports precision gain setup
  • QuickPro Presets™ provide instant access to pro sound setups
  • Two scene memory banks
  • Compatible with many apps including dedicated apps TF Editor, TF StageMix and MonitorMix
  • Natural sound foundation with extra creative freedom
  • Recallable D-PRE™ mic preamps
  • 8 powerful processing/effect units
Log in or register for YOUR best price

Boasting 16 channels, the TF1 is the smallest of Yamaha’s TF series digital mixing consoles. It offers an impressive capability for its size with 17 motor faders, 40 input mixing channels, and a large suite of inputs and outputs. While its compact build makes it the ideal portable solution for mobile applications, it can also be rack-mounted, making it ideal for smaller audio systems of all shapes and sizes.

View full details
  • Mixing capacity
    • Input channels: 40 (32 mono + 2 stereo + 2 return)
    • Aux buses: 20 (8 mono + 6 stereo)
    • Stereo buses: 1
    • Sub buses: 1
  • Fader configuration16 + 1 (Master)
  • Input channel functions8 DCA groups
  • I/O
    • Inputs: 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
    • Outputs: 16 (XLR)
    • Expansion slots: 1
  • On-board DSP8 Effects + 10 GEQ
  • USB34x34 USB Audio Interface, 2-track recording via USB Storage Device
  • Internal sampling frequency rate48kHZ
  • Signal delayless than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
  • Fader100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
  • THDless than 0.05%
  • Frequency response20Hz - 20kHz (+0.5dB, -1.5dB)
  • Dynamic range110dB typical
  • Equivalent input noise-128dBu typical
  • Residual output noise-85dBu
  • Crosstalk-100dB
  • Power requirements100-240V 50/60Hz
  • Power consumption100W
  • Dimensions (WxHxD)20.1x8.9x23.6"
  • Weight29.8 lbs (13.5 kg)
