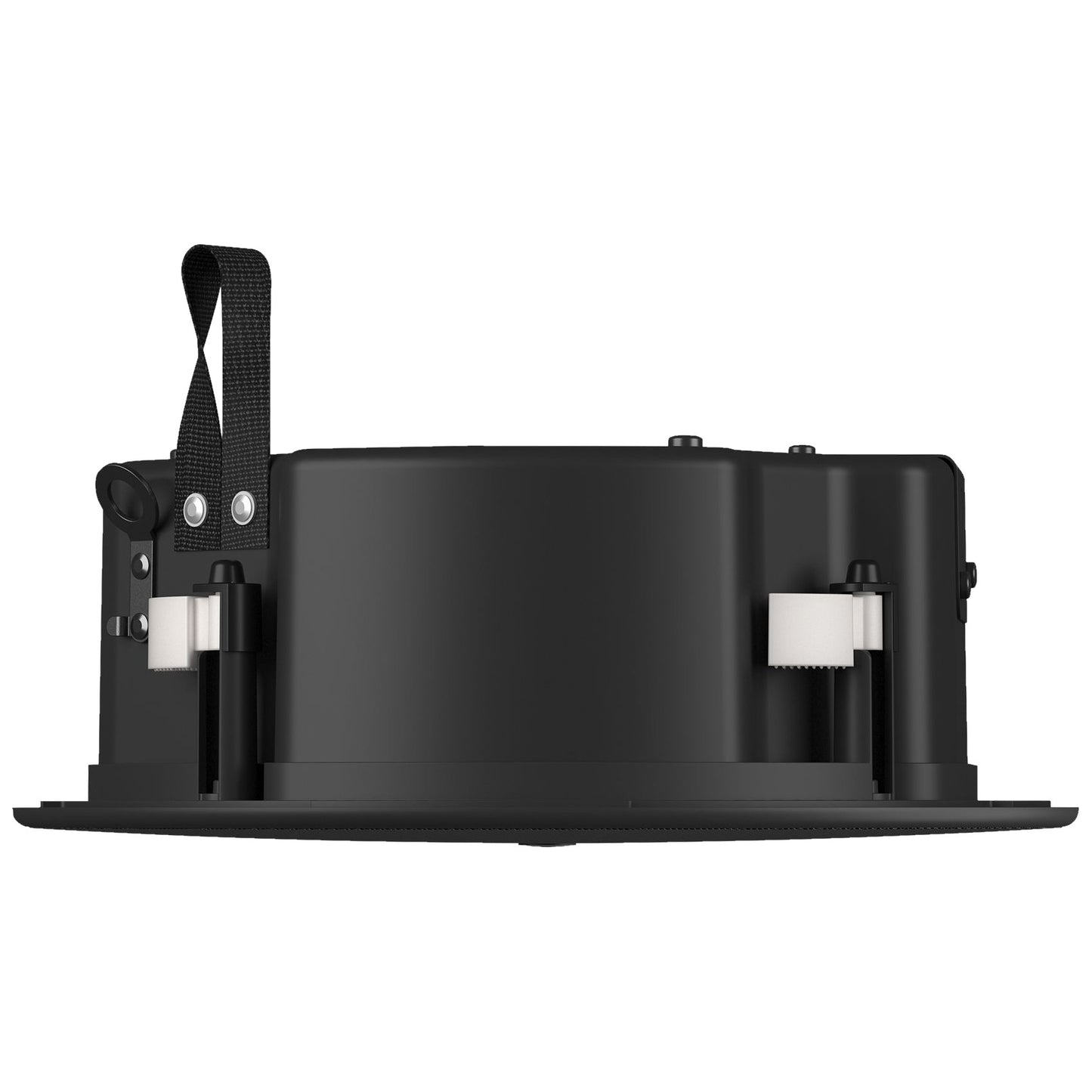

VC series ceiling speakers for commercial installations deliver excellent sound quality at a price point traditionally reserved for economy speakers. A total of six models, three with back cans and three without, feature elegant low-profile designs that can be install easily even in limited ceiling or wall spaces. Large mounting clamps with non-slip treads ensure secure mounting.
Yamaha VC8 Features
- Engineered for optimum BGM and voice reproduction
- Low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Built-in carrying band increases safety during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 4.2 kg (9.3 lbs), Ø325 x D122 mm (Ø12-3/4” x D4-6/8”)
- Single unit package
- VC8 8" 2-Way Ceiling Speaker1
- C-Ring1
- Tile Rails2
- Grille1
- Safety wire1
- Cutout template1
- Owner's Manual1
- Speaker Type2way Coaxial type, Acoustic Suspension
- Frequency Range (-10dB) 96 Hz - 20 kHz (Half-space: 2π)
- Nominal Coverage110° conical (Half-space: 2π)
- Components
- LF: 8” Cone
- HF: 1” Soft Dome
- Power Rating
- NOISE: 25W
- PGM: 50W
- PEAK: 100W
- Nominal Impedance16Ω
- Transformer Taps
- 100V: 12W, 6W, 3W
- 70V: 12W, 6W, 3W, 1.5W
- SPL
- Sensitivity (1W; 1m on axis): 91 dB SPL (Half-space 2π)
- Peak (Calculated): 111 dB SPL (Calculated, 1 m)
- I/O ConnectorsEuroblock (4 pin) ×1 (input: +/ - , loop - thru: +/ - ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq)
- Protection Circuit (Load Protection)Full-range power limiting to protect network and transducers
- FinishVC8B: Black (approx. Munsell N3), VC8W: White (approx. Munsell N9.3)
- Dimensions
- Diameter: 325 mm (12 - 3/4")
- D: 122 mm (4 - 6/8")
- Net Weight4.2 kg (9.3 lbs)
- Cutout SizeØ285 mm (Ø11 - 1/4")
- Required Ceiling Board Thickness2 mm – 37 mm
- CertificationUL1480A, UL2043, NFPA70, CE, RoHS
