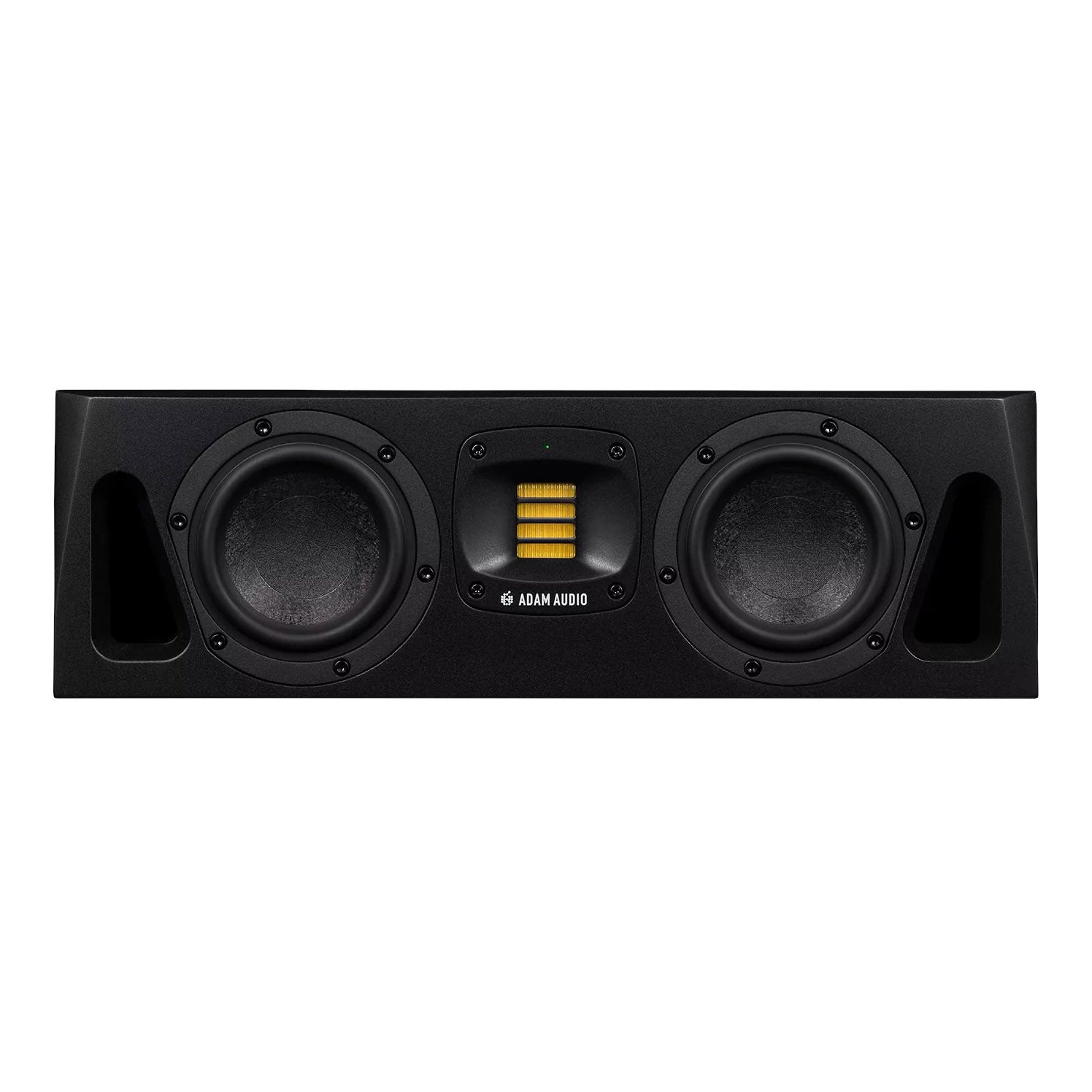

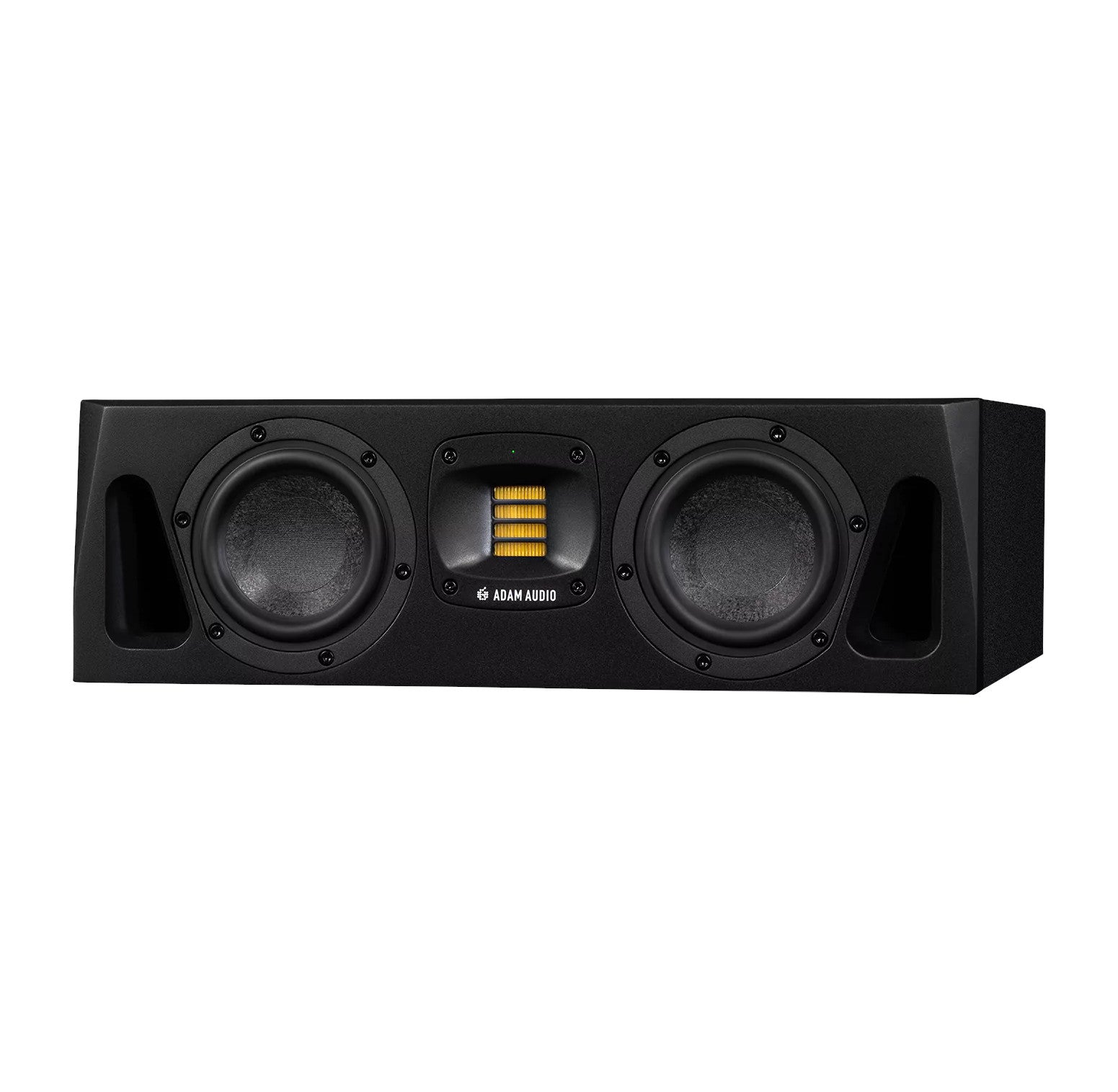

ADAM Audio A44H Dual 4-Inch Powered Studio Monitor
ADAM Audio A44H Dual 4-Inch Powered Studio Monitor
SoundPro Item: 132527 | Part Number: A44H
Usually ships in 5-7 business days
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 2 x 4'' Woofer (Multi-Layer Mineral)
- Cumulated Amp. Power Peak: 130W
- A Control remote software: control DSP-based functionality remotely and in real time over ethernet
- Rotatable HPS waveguide and X-ART tweeter
- Automated room correction with Sonarworks
- 5 year warranty
The A44H offers a low-profile alternative to the A Series A7V while delivering similar performance characteristics.
With a 19-inch width, the horizontally oriented A44H can sit on a standard rack shelf or be mounted above or below a display. The completely new design also enables the A44H to serve as a center speaker in immersive and 3D speaker configurations. Dual 4-inch long-throw woofers and the X-ART tweeter deliver a wide frequency range, while onboard DSP-based tuning capabilities enable you to tweak the sound easily.
- Displayfront panel multi-color LED
- Cabinet Designdual front ported
- Cabinet MaterialVinyl wrapped MDF and painted MDF front panel
- Mounting Optionsthreaded inserts on the bottom of the cabinet (4 x M8)
- Power Consumption
- Max: 220W
- Idle: 10W
- Sleep: 3.5W
- AC Input Voltage100 – 240 V, 50/60 Hz
- Power Rating300W max
- Operating Conditions-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing

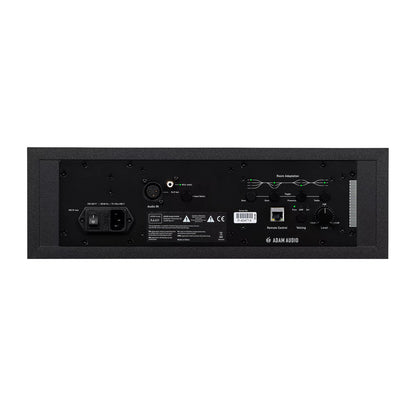

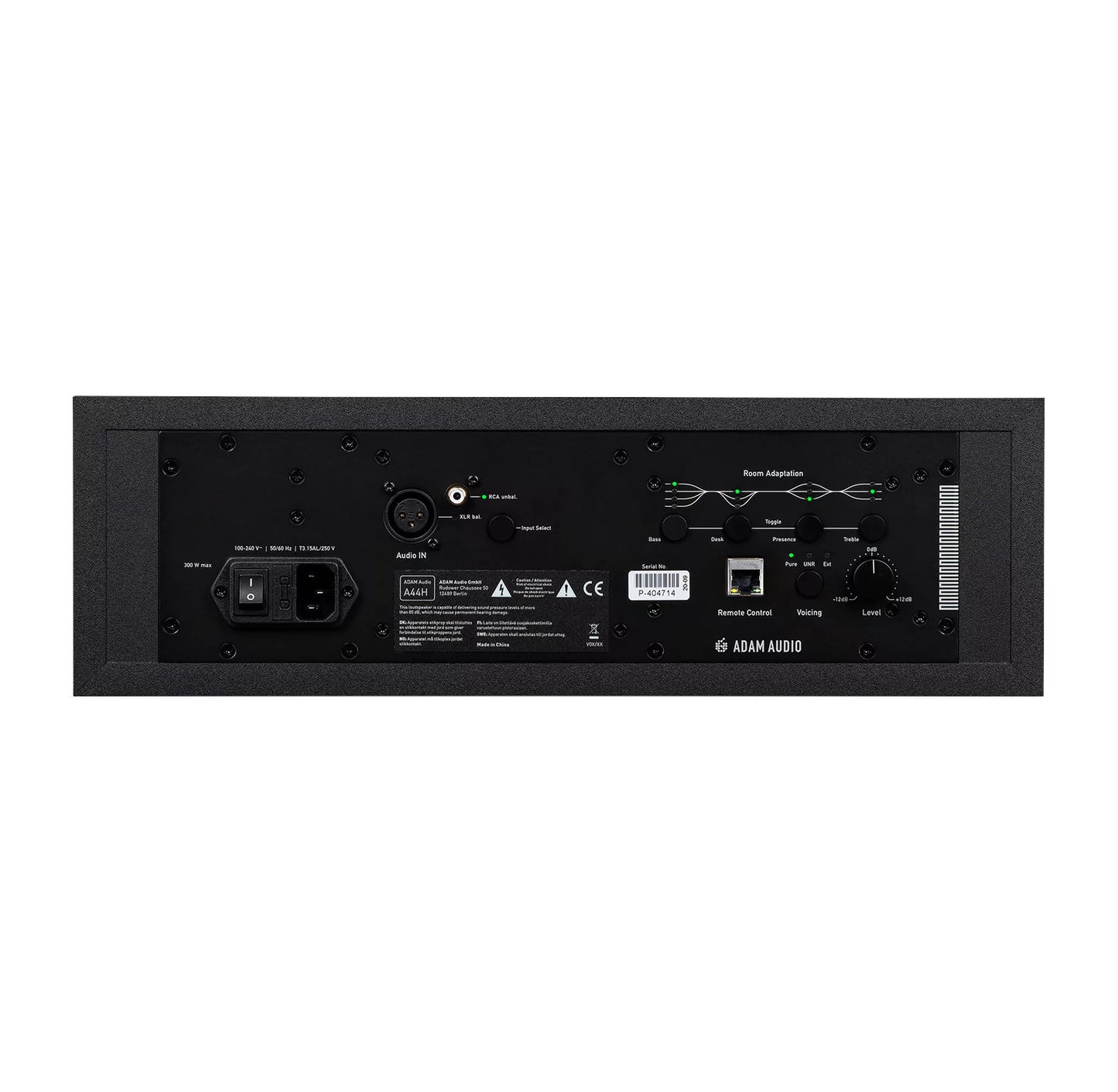

- Audio Input Connectors
- Analog: XLR, RCA
- Input Impedance: 9kohm / 3.3kohm
- Max Input Level: +19dBu
- Amplification: Woofer
- Amplifier Type: PWM
- Peak: 110W (10% THD, limiter deactivated)
- RMS: 90W (1% THD, limiter deactivated)
- Amplification: Tweeter
- Amplifier Type: Class A/B
- Peak: 20W (10% THD, limiter deactivated)
- RMS: 15W (1% THD, limiter deactivated)
- Control Options (via Network)
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-Party Calibration Compatibility: Import from Sonarworks SoundID Reference
- Crossover Frequencies2.4 kHz
- Drivers: Woofer
- Basket Diameter: 2 x 4"
- Voice Coil Diameter: 1"
- Cone Material: MLM
- Drivers: Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch²
- Equivalent Diaphragm Diameter: 2"
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal x 70° vertical
- Signal Processing
- AD Converter: 24-bit
- Internal Sample Rate: 96kHz
- Delay Range, Resolution: 0-10ms, 0.1 ms
- Protection: independent peak and thermo limiters for each driver, and amplifier thermo limiters
- Control Options (via Backplate)
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12dB to +12dB
- Input Selection: balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
- Weight21.3 pounds
- Dimensions (HxWxD)5.3x17x13.75"
