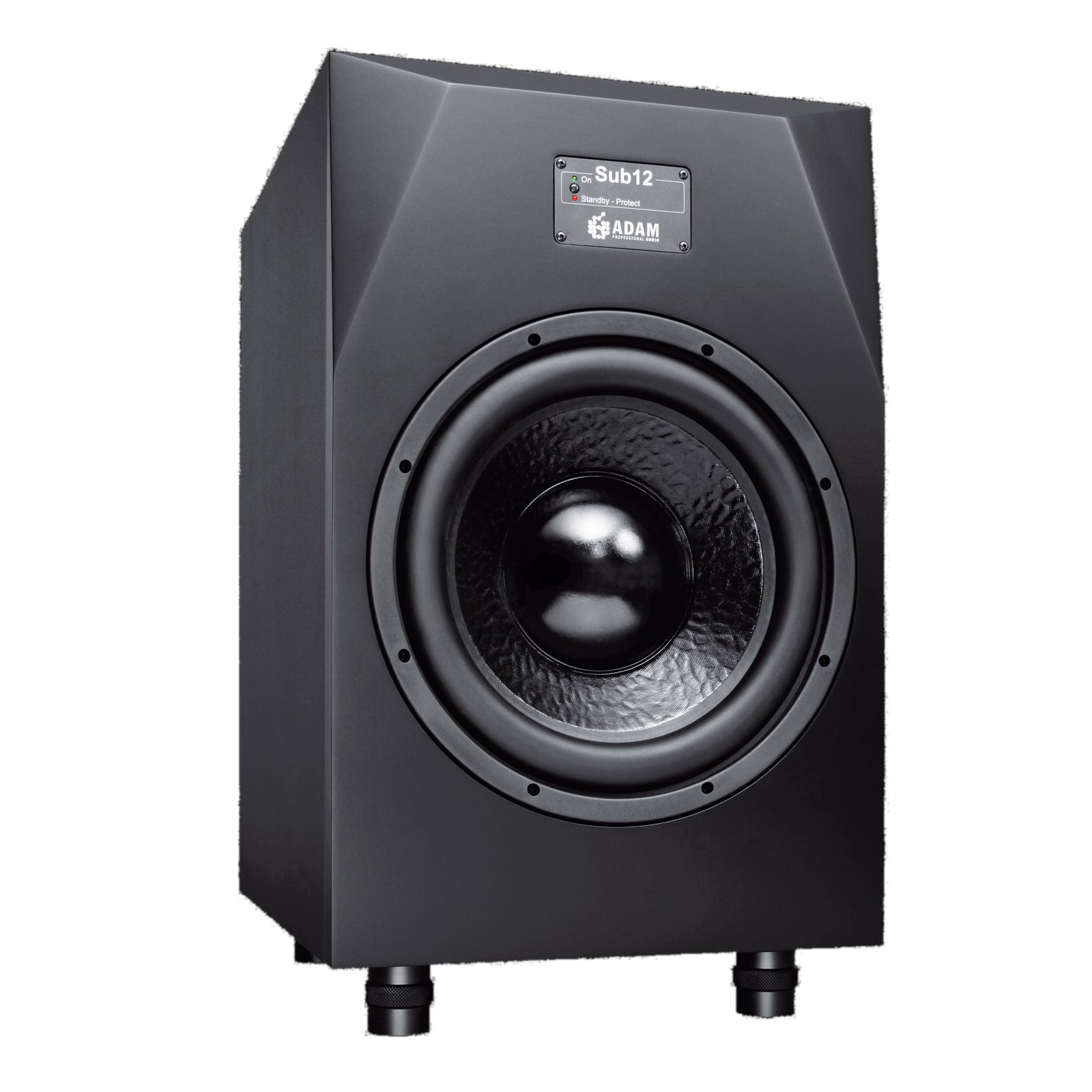

ADAM Audio Sub12 Subwoofer
ADAM Audio Sub12 Subwoofer
SoundPro Item: 85830 | Part Number: SUB12
Usually ships in 5-7 business days
- Bass reproduction down to 22 Hz
- Maximum Peak sound pressure in 1 m = 115 dB
- High efficiency PWM amplifier
- Special 12" woofer with paper diaphragm
- Easy manual or automatic (de-)activation
- Additional sub output
- According to downward working bass reflex tube with generous dimensions and corresponding rounding
- Crossover frequency is selectable between 50 - 150 Hz
- Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz
- 2 years warranty with optional extension to 3 years with the registration of the product
The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.
A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.
The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).
- Frequency Response22 Hz - 150 Hz
- THD> 60 Hz ≤1 %
- Max. peak SPL at 1 m≥115 dB
- Crossover Frequencies50 - 150 Hz
- Input Impedance10 kOhm

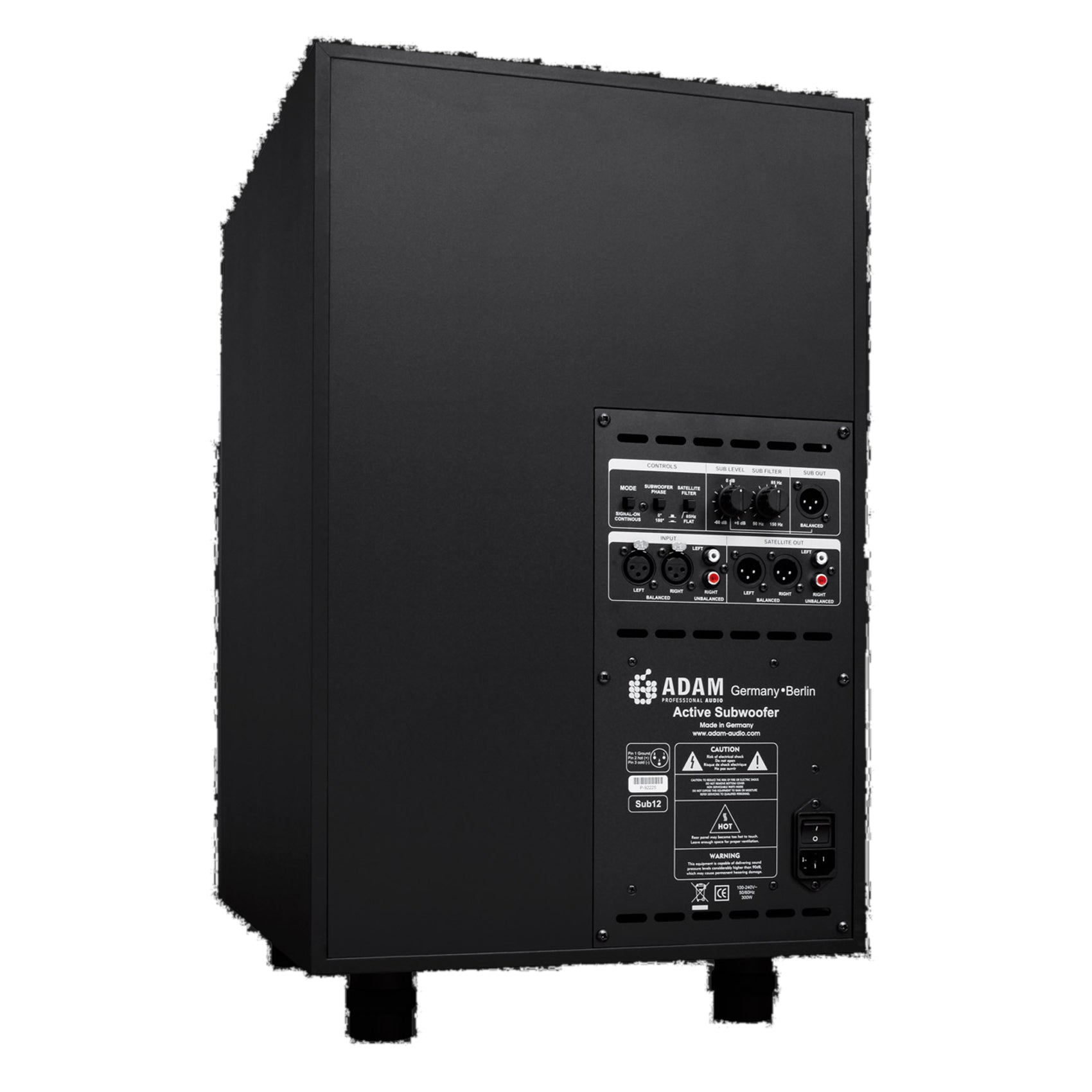

- PanelRear
- Weight57.3 lbs (26 kg)
- Dimensions (HxWxD)23.5x14x17.5" (600x360x450 mm)
- Subwoofer
- Number: 1
- Basket Ø: 12" (310 mm)
- Voice Coil Ø: 2" (50 mm)
- Cone Material: Paper
- Built-In Amplifier
- Subwoofer: 1
- Type: PWM
- Amp. Power RMS / Music: 200 W / 300 W
- Input Connectors
- Analog: XLR / RCA
