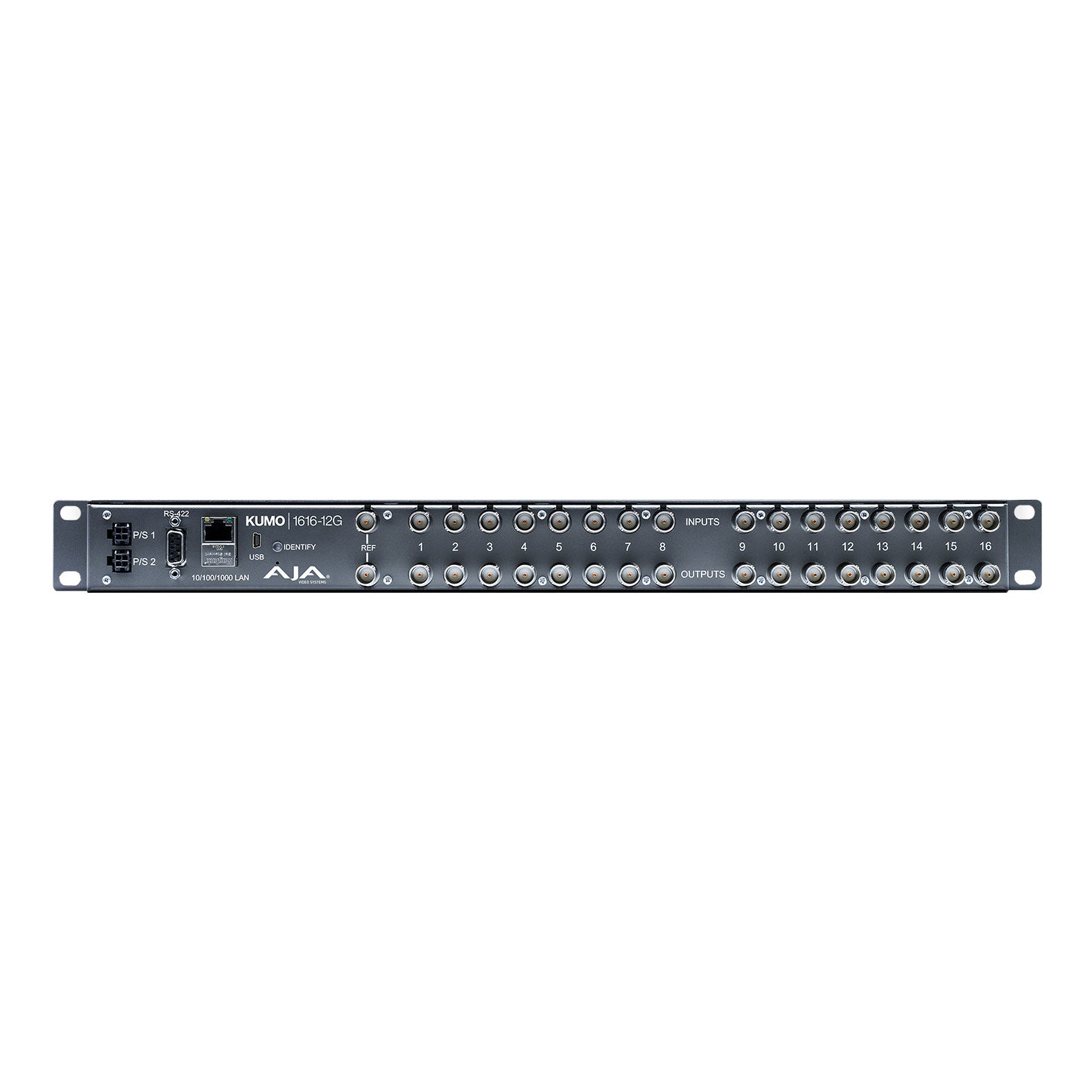

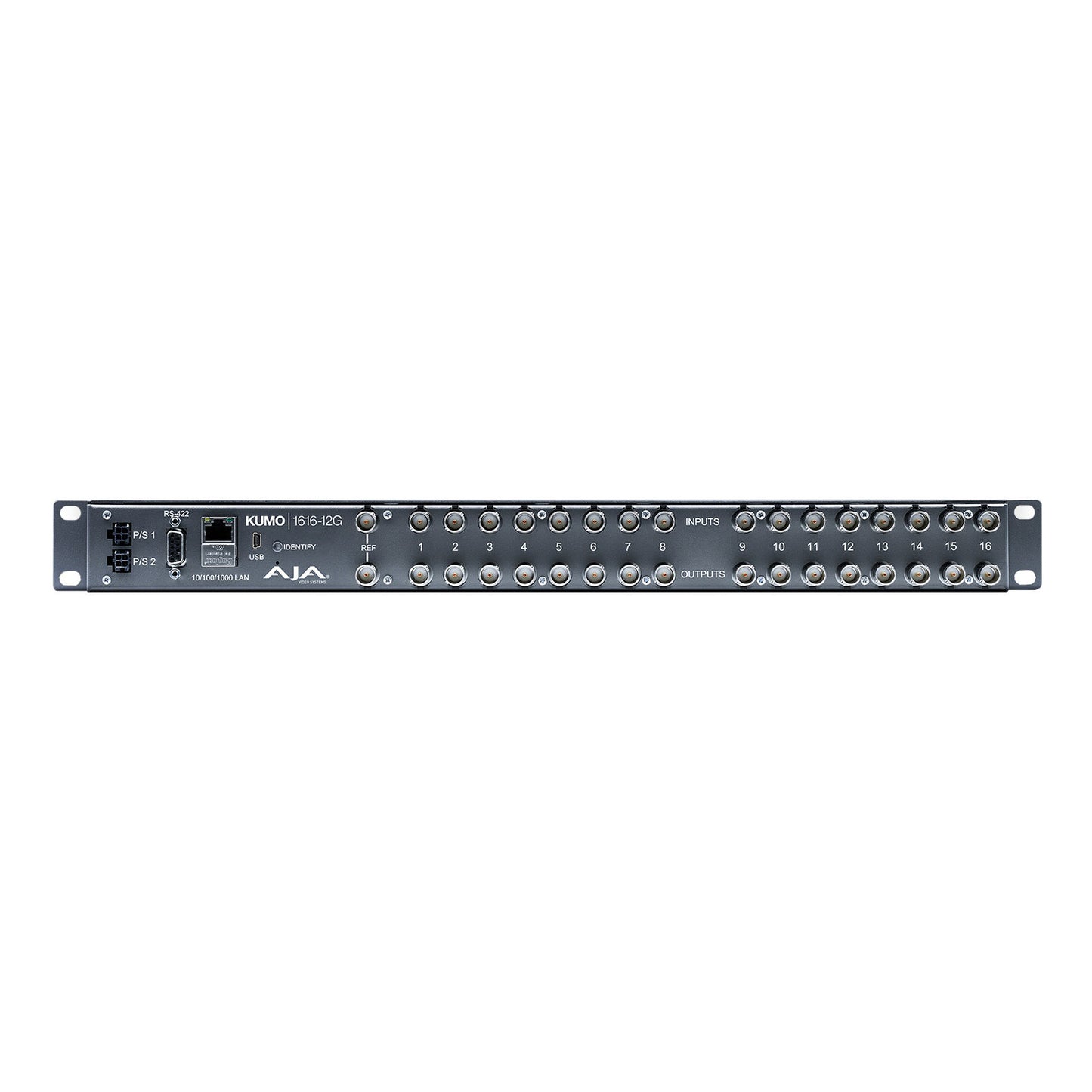

AJA KUMO 1616-12G Compact 16x16 12G-SDI Router

AJA KUMO 1616-12G Compact 16x16 12G-SDI Router

SoundPro Item: 86798 | Part Number: KUMO-1616-12G

$3,315.00
$3,315.00 $3,315.00
Your Price Sold out
MSRP: $3,315.00 | MAP: $3,315.00

Usually ships in 5-7 business days

  • 16x 12G-SDI inputs and outputs
  • Small, portable form factor
  • Single cable support for 4K/UltraHD
  • Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
  • Eight salvos per router
  • Embedded web server for remote control
  • Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
  • Option for redundant power supply
  • Five year warranty
Log in or register for YOUR best price

Requires external power supply (sold separately)

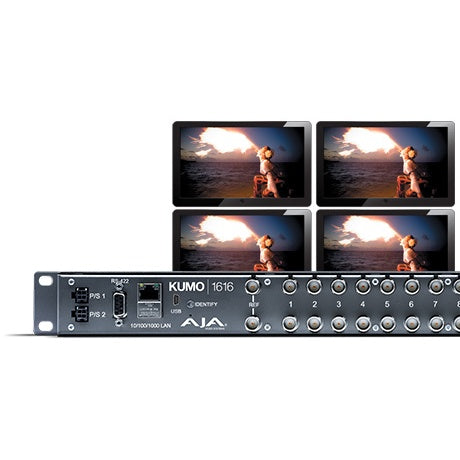

KUMO 1616-12G offers the perfect size for combining multiple cameras, monitors, editing systems, tape decks and file based recorders into a seamless workflow with a compact 1RU profile and support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI from 16x 12G-SDI inputs and 16x 12G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows. Built to the same quality standards as all AJA KUMO products, KUMO 1616-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.

View full details
  • Video Formats
    • 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
    • 270 Mbps DVB-ASI
  • Video Input Digital

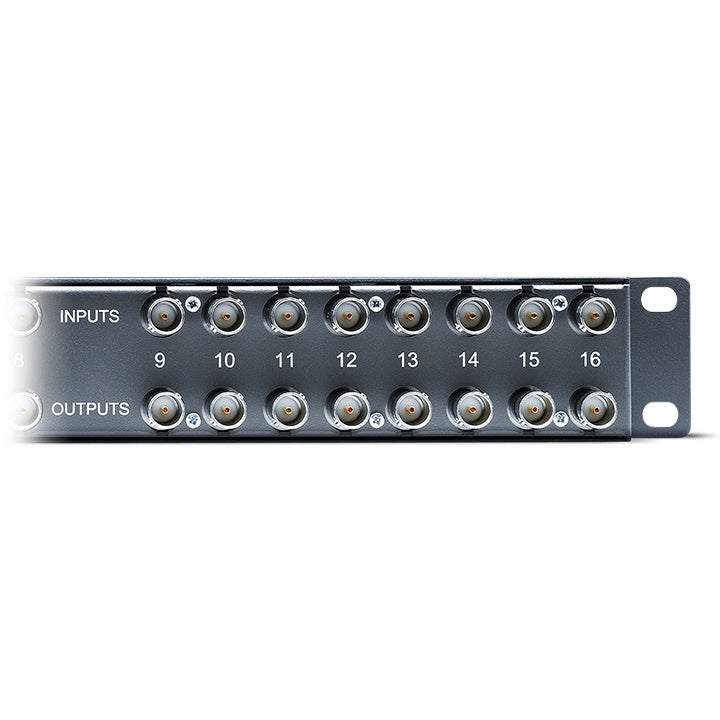

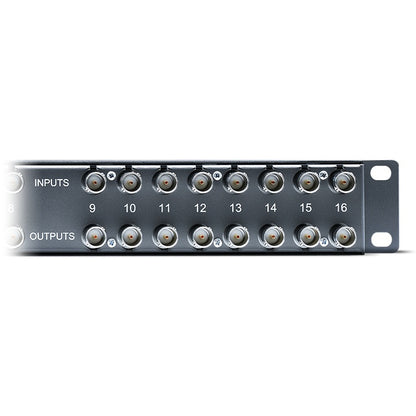

    • 12G-SDI Inputs
    • 16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • Video Output Digital
    • 12G-SDI Outputs
    • 16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
    • Noninverting
  • Ancillary Datapasses all SDI embedded ancillary data including audio
  • Salvoup to 8 Salvos can be configured and saved in each KUMO router
  • Cable Equalization (Belden 1694A)
    • 12 Gbps, up to 55m
    • 6 Gbps, up to 110m
    • 3 Gbps, up to 185m
    • 1.5 Gbps, up to 210m
    • 270 Mbps, up to 405m
    • Automatic operation
  • Reclocking270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • Switching Modes
    • Single/Normal, Dual, and Quad Link modes
    • Switches in vertical blanking per SMPTE RP-168

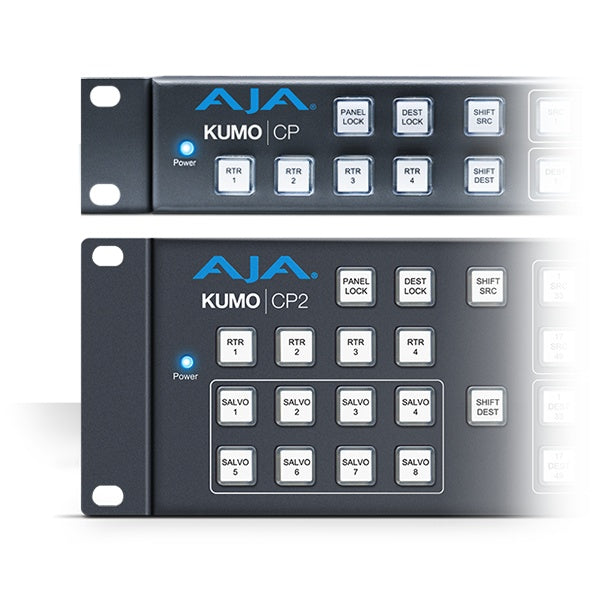

  • Control Panel Compatibility
    • AJA KUMO CP – 1RU X-Y Ethernet control panel
    • AJA KUMO CP2 – 2RU X-Y Ethernet control panel
  • Reference Input
    • External, 2x BNC
    • Looping, nonterminating
    • Blackburst or tri-level sync
  • Network Interface
    • 1x RJ-45, 10/100/1000 Ethernet
    • Supports AJA KUMO Ethernet control panels, direct connect or networked
    • Basic support for Grass Valley Native Protocol
    • Embedded web server for remote control
  • USB Interface1x Mini-USB for IP configuration using AJA eMini-Setup
  • Serial Interface
    • 1x DB-9 Female, RS-422
    • Basic support for Grass Valley Native Protocol
    • 9-pin D-connector pinout as follows
      • 1: GND
      • 2: TX-
      • 3: RX+
      • 4: GND
      • 5: No Connection
      • 6: GND
      • 7: TX+
      • 8: RX-
      • 9: GND
      • Shell: GND
  • Power
    • External power supply requied
      • Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 16W typical, 18W max.
      • AC adapter (included): 100-240VAC, 50/60 Hz, universal input, 60W
      • Optional redundant AC adapter (sold separately), KUMO-PWR
  • Environment
    • Safe Operating Temperature: 32F to 104F (0C to 40C)
    • Safe Storage Temperature (power off): -40F to 140F (-40C to 60C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet
  • Dimensions (WxDxH)1RU - 17.4" x 1.54" x 1.75"
  • Weight1.4 pounds
