ChamSys GeNetix 4-Port DMX Splitter IP65
ChamSys GeNetix 4-Port DMX Splitter IP65
SoundPro Item: 146876 | Part Number: GENETIXGD4IP
Usually ships in 5-7 business days
- IP65 Housing Helps Protect In Demanding Environments
- 4 DMX Outputs Support Clean Signal Distribution
- RDM Disable Button Aids System Troubleshooting
- PowerCon True1 Top Input Supports Secure Power
- M12 Mounting Insert Simplifies Rig Attachment
- Safety Bond Rail Adds Confidence When Rigged
- Port Status LEDs Speed Up Visual Checks

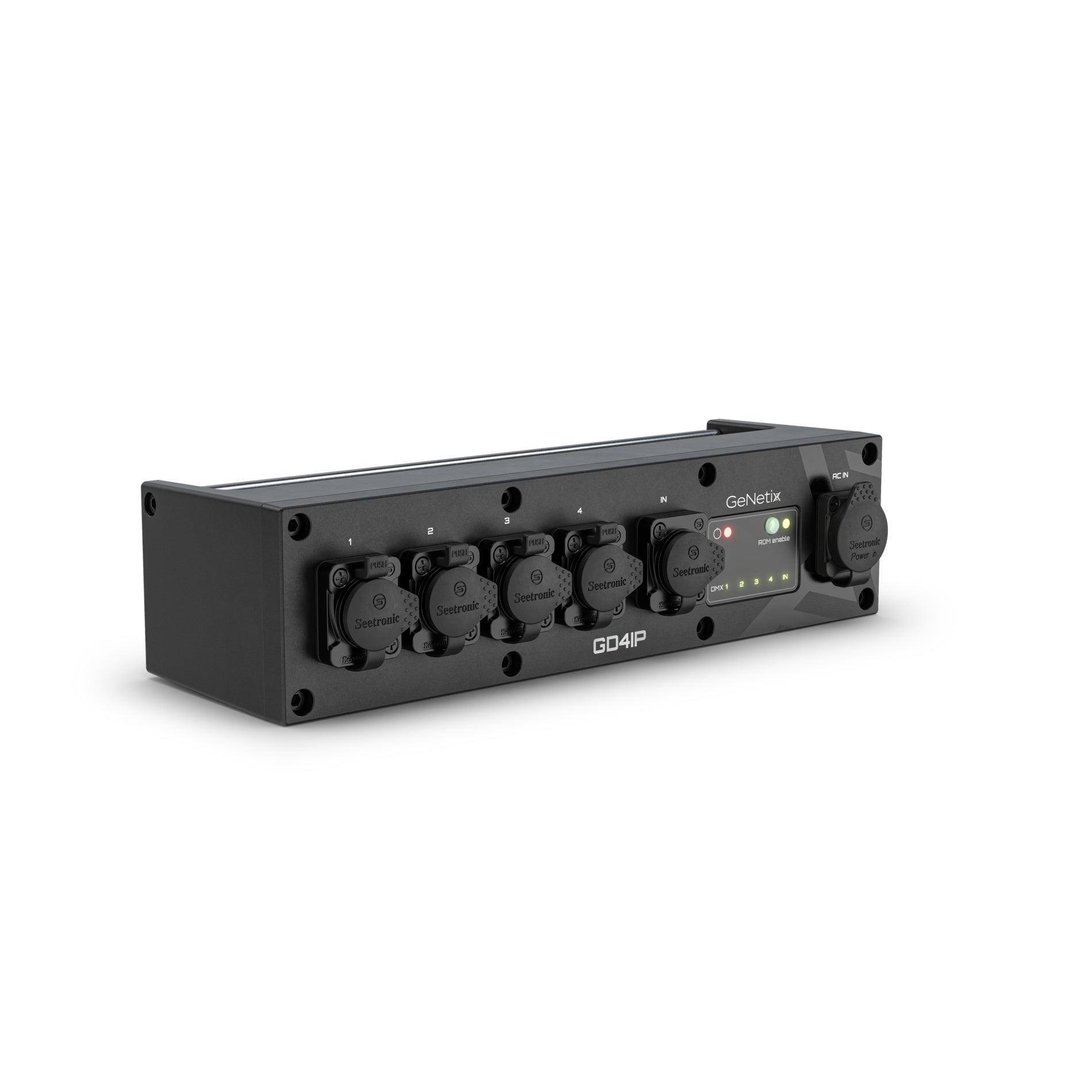

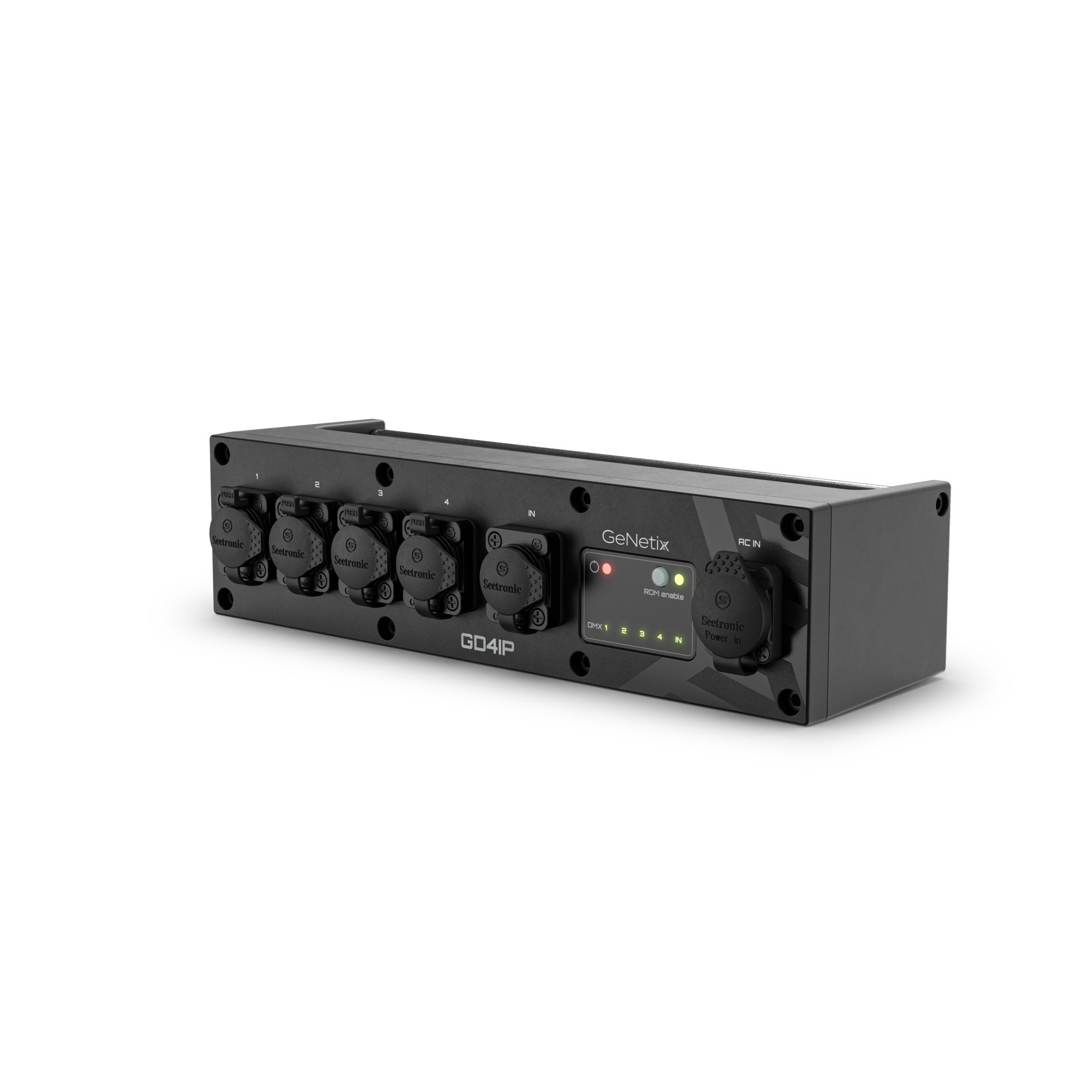

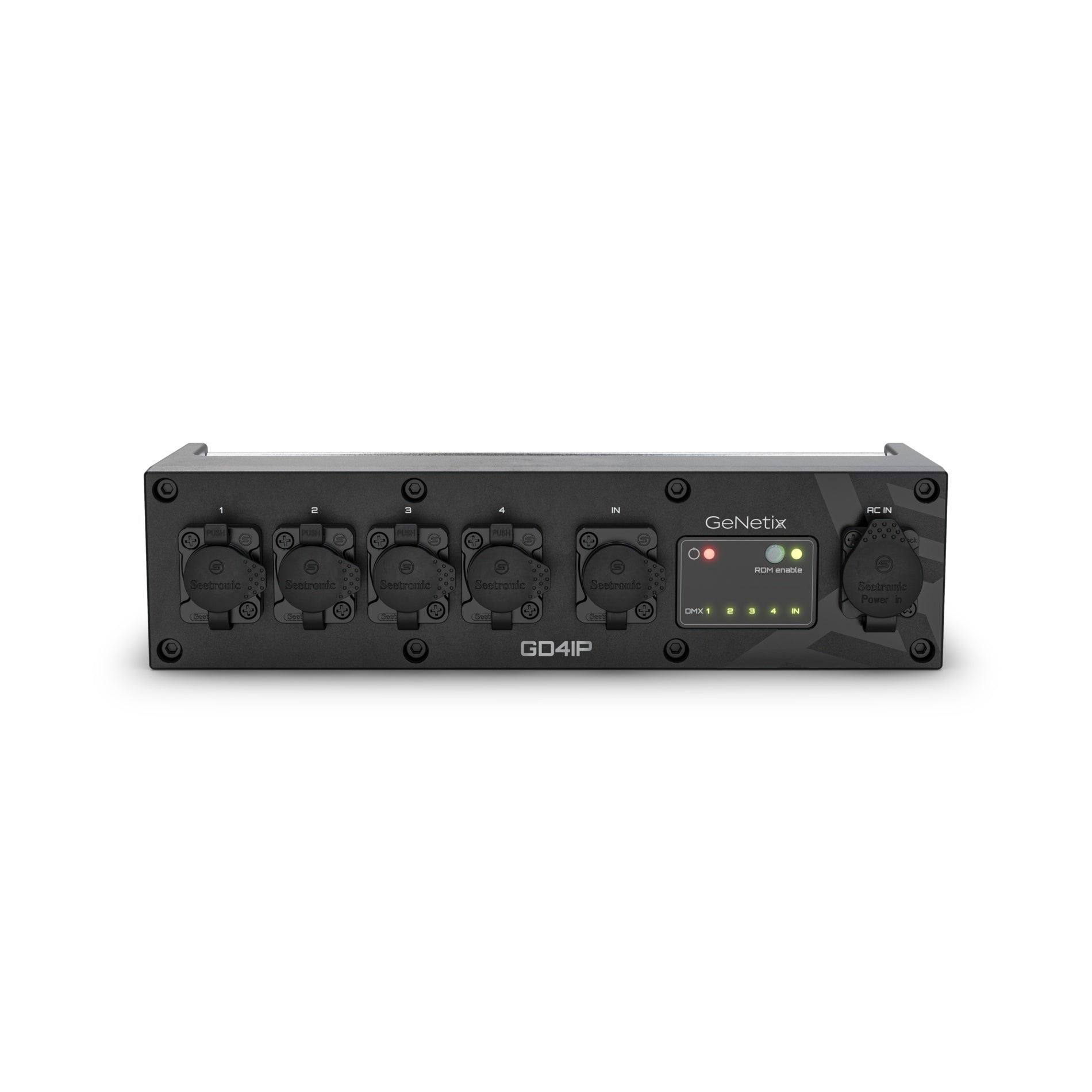

The ChamSys GENETIXGD4IP is a compact 4-port DMX splitter built for lighting networks that need dependable signal distribution in demanding environments. With one 5-pin DMX input feeding four 5-pin DMX outputs, it supports clean routing for stage, event, and architectural lighting systems where durability and straightforward deployment matter. The IP65-rated enclosure and Seetronic IP65 connectors make it a strong fit for rigs exposed to dust, moisture, or outdoor conditions.

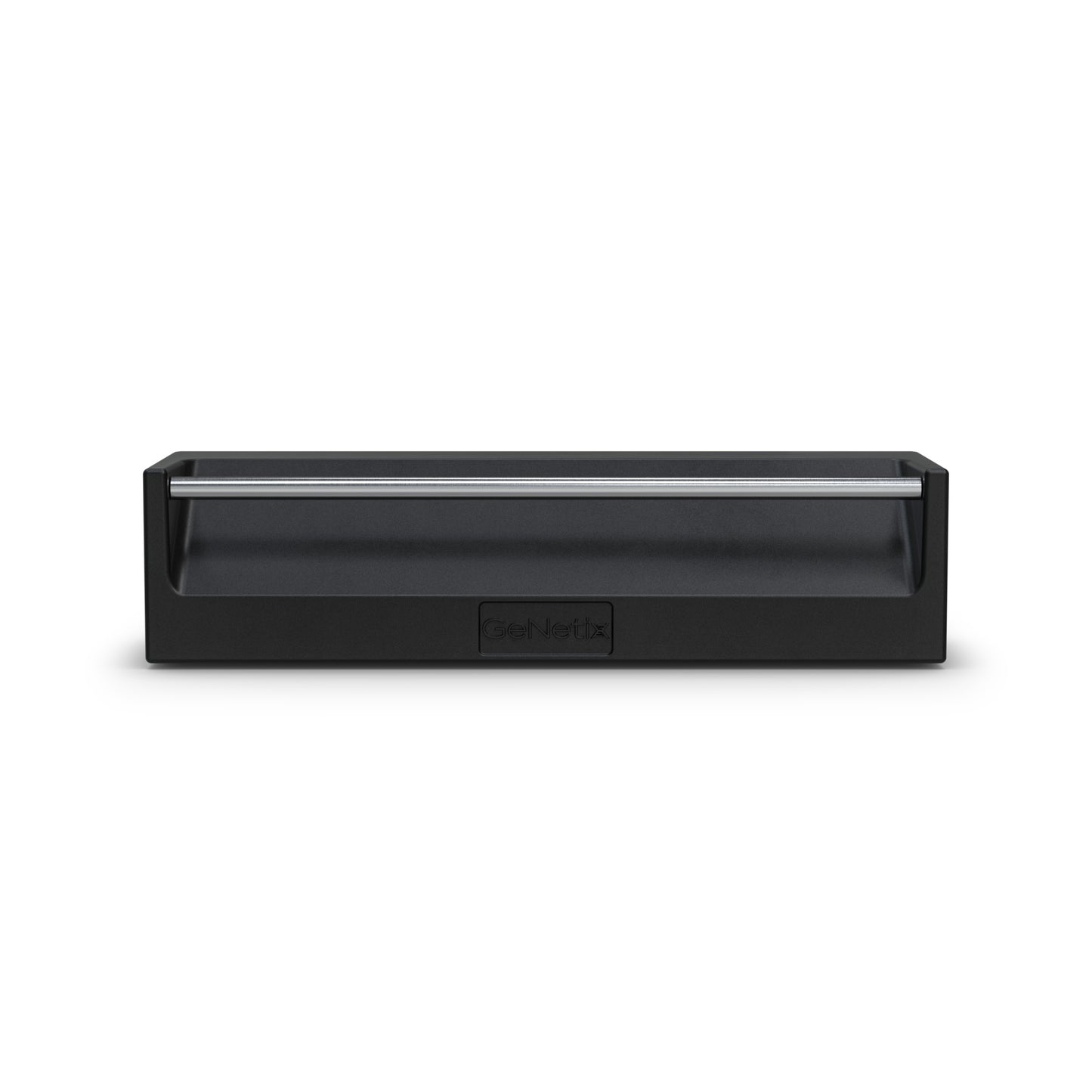

This unit is also designed with practical workflow considerations for production teams and installers. An onboard RDM disable button allows users to strip RDM data and retime the DMX signal when system behavior calls for a simpler data path. Power is provided via a PowerCon True1 Top mains input, and the housing includes multiple mounting provisions, including an M12 threaded insert for clamp mounting and a built-in rail for a secondary safety bond when rigged.
For temporary productions, touring systems, and permanent lighting infrastructure, the GENETIXGD4IP offers a rugged way to expand and protect DMX distribution without adding unnecessary complexity. Port status LEDs support quick visual confirmation during setup and troubleshooting, helping crews move faster when reliability is critical.
