The ALF-30X-HDBaseT is an HD PTZ 1080p equipped camera with a 30x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, and conference venues. The ALF-30X-HDBaseT is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.
Alfatron Electronics 30X-HDBaseT Features
- Superb High-definition Image: Utilizes 1/2.8-inch-high quality CMOS sensor. Resolution is up to 1920×1080 with a frame rate up to 60 fps
- Leading Auto Focus Technology assures the lens is fast, accurate and stable at auto-focusing
- Low Noise and High SNR
- Quiet PTZ
- Video Outputs supports HDBaseT
- IR remote controller
- Low-power Sleep Function supports low-power sleep/wake up
- Support Multiple Control Protocol: VISCA, PELCO-D and PELCO-P protocols which can also be automatically recognized. Supports VISCA control protocol via the IP port
- Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
- Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
- 255 Presets Positions
- Wide usage Application: Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems
- Power: DC 12V PSU or POC
- 30X-HDBaseT HDBaseT PTZ Camera1
- Power Supply1
- RS232 Control Cable1
- IR Remoter1
- Mount Bracket1
- Manual1
- Camera Parameter
- Sensor: 1/2.8-inch-high quality HD CMOS sensor
- Effective Pixels: 16: 9 2.07 megapixel
- Video Format: HDBaseT video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
- Optical Zoom
- 30X
- f＝4.3～129mm
- View Angle
- 2.34°（tele）
- 65.1°（wide)
- AV: F1.6 – F4.7
- Digital Zoom: 10X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D & 3D DNR
- White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
- Focus: Auto/Manual
- Aperture: Auto/Manual
- Electronic Shutter: Auto/Manual
- BLC: ON/OFF
- WDR: OFF/ Dynamic level adjustment
- Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
- SNR: >55dB
- Input/output Interface

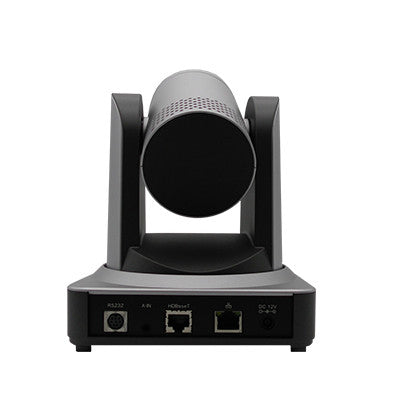

- Video Interfaces: HDBaseT (POE), LAN, Audio-in, RS232
- Image Code Stream: Double streams output simultaneously
- Video Compression Format: H.264, H.265
- Control Signal Interface: RS-232 Ring through RS232 output, RS-485
- Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
- Audio Input Interface: Double track 3.5mm linear input
- Audio Compression Format: AAC/MP3/PMC Audio compression
- Network Protocol: RTSP/RTMP,ONVIF
- Power Interface: HEC3800 outlet (DC12V)
- PTZ Parameter
- Pan Rotation: ±170°
- Tilt Rotation: -30°～+90°
- Pan Control Speed: 0.1 -60°/sec
- Tilt Control Speed: 0.1-30°/sec
- Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
- Preset Number: 255 presets (10 presets by the remote controller)
- Other Parameters
- Supply Adapter: AC110V-AC220V to DC12V/2A
- Input Voltage: DC12V±10%
- Input Current: 1A(Max)
- Consumption: 12W (Max)
- Store Temperature: -10℃ to +60℃
- Store Humidity: 20% – 95%
- Working Temperature: -10℃ to +50℃
- Working Humidity: 20%–80%
- Dimensions: 150x150x167.5mm
- Weight: 1.4KG
- Working Environment: Indoor
- Remote Operation (IP): Remote Upgrade, Reboot and Reset
