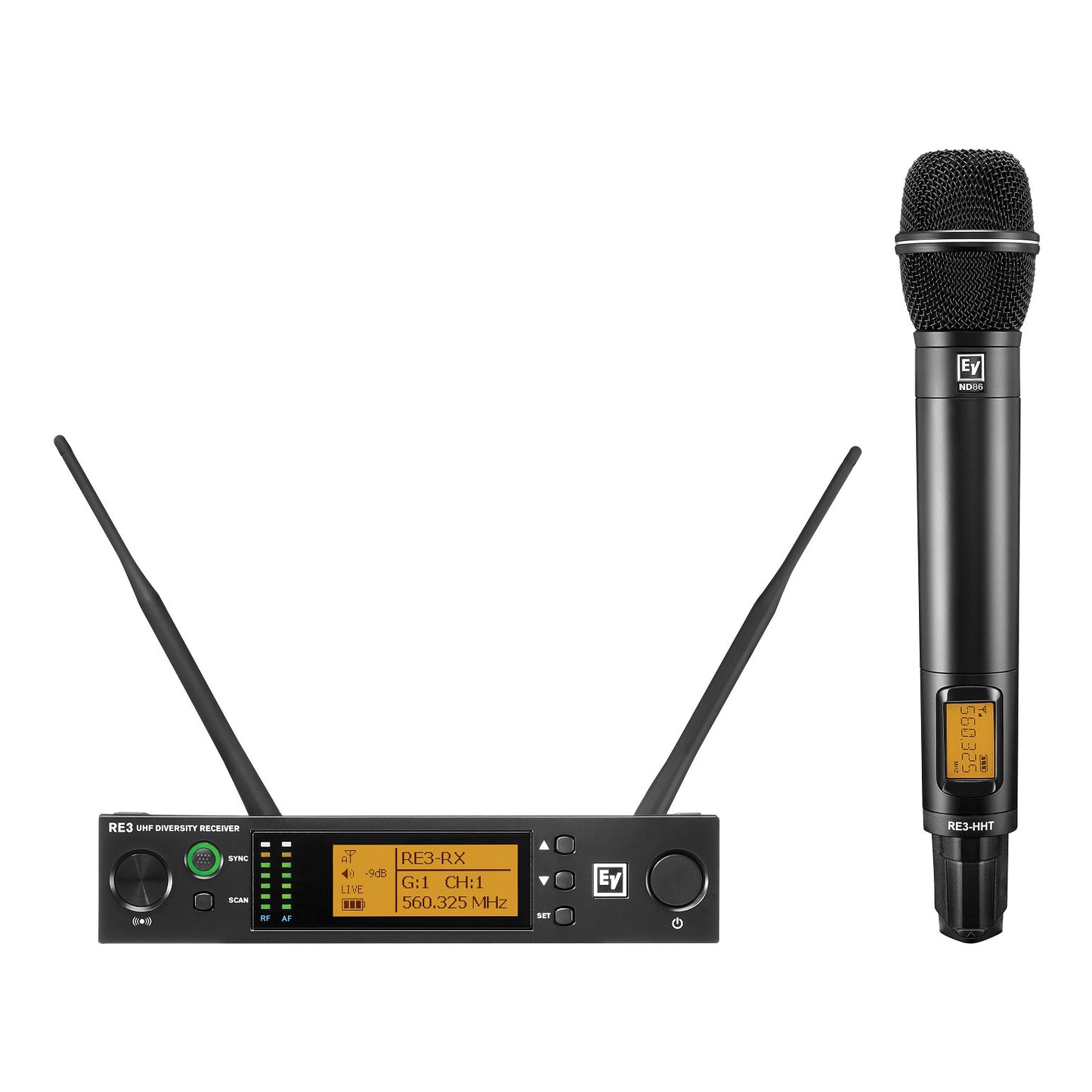

The RE3-ND86 UHF Handheld Mic System includes an ND86-RC3 Wireless Head + Capsule, RE3-HHT Handheld Transmitter, and RE3-RX Diversity Receiver.
This Electro-Voice set features ND86 dynamic supercardioid microphone head for vocal performance and presentations. The ND86's sound is present, smooth, and detailed, and its supercardioid polar pattern provides excellent acoustic control in even the largest of venues.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Electro-Voice RE3-ND86 System Features
- Wireless UHF handheld set
- Features ND86 dynamic supercardioid mic head
- Great for vocal applications
- Delivers smooth, detailed sound
- Provides excellent acoustic control
- Quick and easy setup
- Rock-solid system performance
- ND86-RC3 Wireless Head with ND86 Capsule1
- RE3-HHT Handheld Transmitter1
- RE3-RX Diversity Receiver1
- Microphone stand adapter1
- Two receiver antennas1
- Universal power supply1
- Two AA batteries2
- Receiver rack mounting hardware1
- Owner's manual1
- Documentation packet1
- Declaration of conformity1
- ND86-RC3 Wireless head with ND86 Capsule
- Element type: Dynamic neodymium magnet structure
- Frequency response, close: 30 Hz-17 kHz
- Frequency response, far: 70 Hz-17 kHz
- Polar pattern: Supercardioid
- Sensitivity, open circuitvoltage @ 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa
- Maximum SPL: 134.5 dB SPL (1% THD)
- Impedance: 1000 ohms
- Power requirements: 4-8 VDC
- Polarity: Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
- Electrical contact: 3-Ring/3-Pin
- Threaded coupling
- 1.25" diameter
- 28 UN-2A thread pitch"
- Finish: Black polyurethane paint
- Materials: Aluminum, steel, steel wire grillescreen
- Dimensions, length diameter: 3.6 in. (91 mm)2.0 in. (50.5 mm)
- Net weight: 6.5 oz (184 g)
- Shipping weight: 8.4 oz (238 g)
- RE3-RX Diversity Receiver
- Frequency Oscillation Mode: Phase-locked loop (PLL)
- Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
- Sync Frequency: Ultrasonic 40 kHz
- Diversity: Antenna diversity
- Bandwidth: 36MHz
- Signal/Noise Ratio: >100dB(A)
- Total Harmonic Distortion (Thd): <0.6%@1kHz
- Receiving Sensitivity: -81dBm for -12dB SINAD
- Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
- Antenna Type: Detachable ½ wave with BNC connector
- Antenna Booster Power: DC12 - 15V/100mA
- Function Display By: LCD
- Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
- Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
- Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
- Audio Frequency Output Level
- Ref：±22.5kHz Dev@1kHz Tone
- ¼” (6.3mm) Phone Jack：-10dBV
- XLR Jack：-4dBV(Line)、-24dBV(MIC)
- Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
- Squelch and noise muting: Noise muting and tone code locking
- Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
- Power Supply: DC12~15V/500mA
- Finish: Black polyurethane paint
- Dimensions
- Width: 8.27 inch (210mm)
- Height: (with feet attached) 1.85 inch (47mm)
- Height: (without feet attached) 1.73 inch (44mm)
- Depth: (including antenna jack) 6.89 inch (175mm)
- Depth: (not including antenna jack) 6.1 inch (155mm)
- Net Weight: 2.71 lbs [1.23 kg]
- Gross Weight: 3.28 lbs [1.49 kg]
- RE3-HHT Handheld Transmitter
- Frequency Oscillation Mode: Phase-locked loop (PLL)
- Sync Frequency: Ultrasonic
- Display By: LCD + LED
- Function Controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
- RF Stability: <±10kHz@Fc
- Modulation Frequency Shift
- Wideband FM
- ±48kHz deviation
- Harmonic Radiation: <-50dBc
- Battery: 2 x AA alkaline battery or NiMH rechargeable battery
- Charging Contacts: Yes
- Microphone Coupling: 1.25” diameter, 28 UN-2A thread pitch
- Microphone Electrical Contact: 3-ring/3-pin
- Finish: Black polyurethane paint
- Dimensions (without head)
- Height: 7.52 inch (191mm)
- Width at threaded end: 1.46 inch (37mm)
- Width at control cover: 0.856 inch (22mm)
- Net Weight (without head): 12.2oz [346 grams]
- Gross Weight (without head): 16.9oz [480 grams]
