The JBL Control 227CT 6.5-Inch Ceiling Speaker is designed for applications requiring superior quality sound in-ceiling mount applications.
JBL Control 227CT Features
- Consistent 120° broadband pattern control for exceptional coverage.
- Coaxial design features Kevlar-reinforced 165 mm (6.5 in) woofer, 25 mm (1 in) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music. 150 Watts Power Handling.

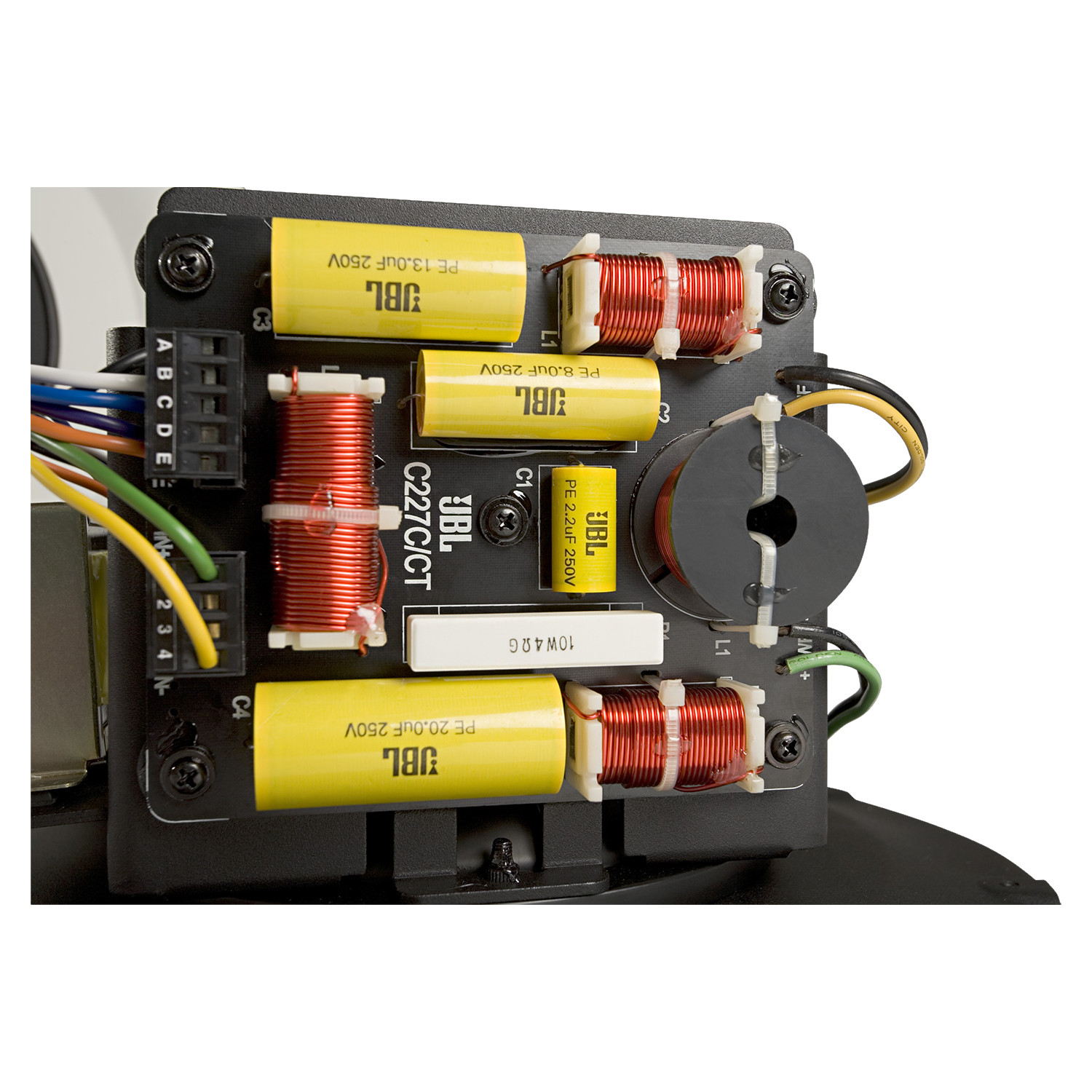

- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Separate back can and contemporary grille available (sold separately).
- Control 227CT 6.5-Inch Ceiling Speaker1
- Ported baffle pre-attached1
- Transformer on 227CT1
- Frequency Range (-10dB)43 Hz - 19 kHz
- Transformer Taps 68W, 34W, 17W (& 8.5W @ 70V)
- Sensitivity 90 dB (1 kHz - 16 kHz)
- Coverage Angle 120° conical, constant directivity
- Frequency Response (-3 dB) 75 Hz - 17 kHz
- Drivers
- LF Driver: 165 mm (6.5 inch)
- HF Driver: compression driver, 25 mm (1 inch) coil
- Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
- Net Weight (each) 5.2 kg (11.5 lb)
- Shipping Weight (pair) 6.6 kg (14.5 lb)
- Power Rating See transformer taps
- Maximum SPL (1m) 108 dB (top 70V/100V tap)
- Input Connectors Screw locking barrier strip for bare wire
- Color White
- Backcan formed steel (wood-lined; accessory)
- Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
- Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
- Plenum Usage Yes, with accessory backcan
