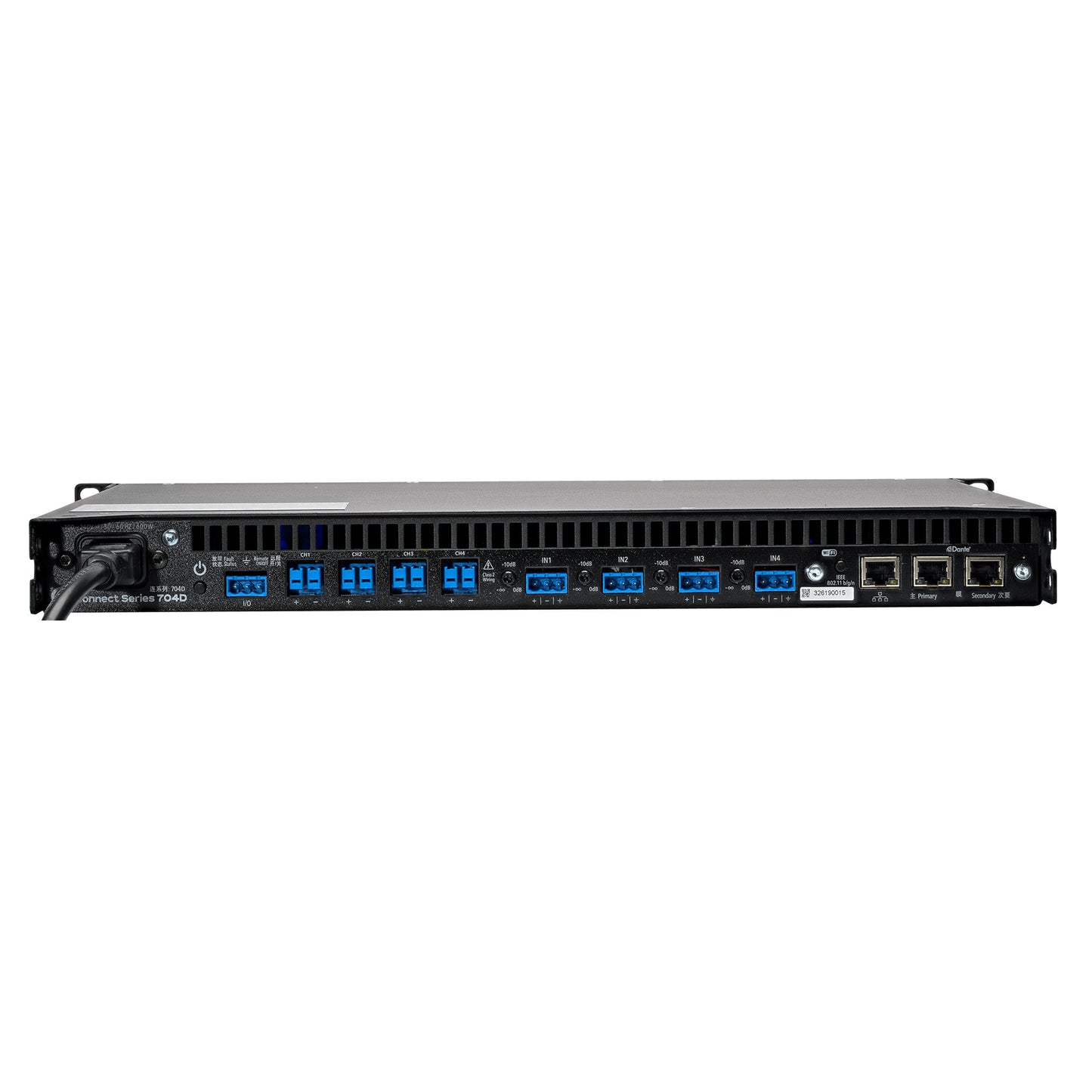

LEA Professional CONNECT 704D 4-Channel 700W Dante Power Amplifier

$3,198.00
SKU:
117925
UPC:
850011348536

The 704D 4-channel 700 watt power amplifier is part of the Internet of Things- (IoT) enabled, professional-grade amplifier DANTE CONNECTSERIES. Perfectly suited for small to medium scale installations, this four channel amp features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Cloud connectivity is a popular feature. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Analog inputs, Dante inputs and external I/O control are also featured for remote powering and fault monitoring.

Amplifier Features

  • DANTE CONNECT 704D uses 350 watts per channel with 2Ω; 4Ω, 8Ω, and 70V / 100V use 700 watts per channel
  • Web browser-based UI – works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 ways to connect: built in WiFi access point, existing WiFi network, Local Area Network Ethernet connection
  • 96kHz analog devices DSP with input routing, multiple 48dB/Oct crossover filters, 8 parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal switch mode power supply with PFC: operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O port for remote on/off and fault monitoring
  • Highly efficient Class D output stage for low AC current draw
