PreSonus Revelator io44 USB Audio Interface

Get the sound of a professional recording studio in the comfort of your own home with the Revelator io44 from PreSonus. This USB audio interface is ideal for musicians, DJs, gamers, streamers, podcasters, and other content creators and audio artists. The Revelator io44 boasts enhanced connectivity, high-performance processing, and a built-in mixer—all the features you need to sculpt a sound that is uniquely yours.

Connect your favorite XLR microphone (sold separately) to record or stream with crystal-clear audio. PreSonus’ XMAX-L mic preamps ensure not only that you’re heard, but that you sound outstanding, with smooth, natural audio that is free of distortion. Meanwhile, Revelator io44’s onboard processing allows you to master your audio using crafted presets for an effortless polish—even when you’re streaming live.

The Revelator io44 features an intuitive mixer that lets you simultaneously blend audio from up to 3 sources. Add backing tracks, incorporate calls from Skype or Zoom, or stream gameplay without overtaxing your computer. An automatic output limiter protects your stream from distortion. Create custom mixes on your macOS or Windows. Enjoy near-zero latency when it comes to monitoring your streams and/or recordings.

In addition, the Revelator io44 USB audio interface includes great effects options to add texture, flavor, and personality to your projects. Emulate concert hall reverb, AM radio, and so much more. Create custom presets to use on the fly during impromptu mixes. Your customized sound is stored on the Revelator io44 itself, meaning you have access to all your personal favorites whether you’re connected to another device or not. This audio interface also includes Studio One Artist production and recording software, as well as the Studio Magic software bundle.

Rounding out the Revelator io44’s awesome features is a wireless remote control, which is compatible via UC Surface for iPadOS®, Windows®, and Android™ devices. Wield touchscreen control over all the interface features, processing, and mixer…all at your fingertips, and without requiring you to click away from your stream.

PreSonus Revelator io44 Features

• Connect a professional XLR mic, guitar, DJ mixer, gaming headset, or more
• Onboard processing is available on every analog input
• PreSonus XMAX-L mic preamp
• Easy-to-use mixer lets you blend audio from up to 3 different applications at once
• Can be controlled remotely
• Includes music production software
• Great for guitarists, singers, DJs, and more

• Revelator io44 USB audio interface1
• Studio One Artist production1
• Studio Magic software bundle1

• Computer System Requirements
  • macOS®
  • macOS version 10.13 or later
  • 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates)
  • Available USB port
  • Windows®
  • Windows 10 or later (64-Bit Only)
  • 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
  • Available USB port
  • Chrome OS
  • iOS/iPadOS
  • Android
• Microphone Preamp
  • Type: XLR female, balanced
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20Hz - 20,000Hz
  • Input Impedance (balanced): 1.4kΩ
  • THD+N (1 kHz, -1 dBFS, min gain): 0.005% (1 kHz, -1 dBFS, min gain)
  • EIN (A-wtd, 150Ω, max gain): -128 dBu
  • Gain Control Range (± 1 dB): 60dB
  • Max Input Level (±0.5 dBu, min gain): +10 dBu
  • Phantom Power (10 mA total): +48 VDC
• Instrument Input
  • Type: 1/4" TS female, unbalanced
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20Hz - 20,000Hz
  • Input Impedance: 750kΩ
  • Gain Range: 50dB
  • Max. Level: +10 dBu (min. gain)
• Line Input (Stereo)
  • Type: 1/8" TRS female
  • Max. Level (1 kHz, unity gain, z-balanced): +10 dBu
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20Hz - 20,000Hz
  • Gain Range: 40dB

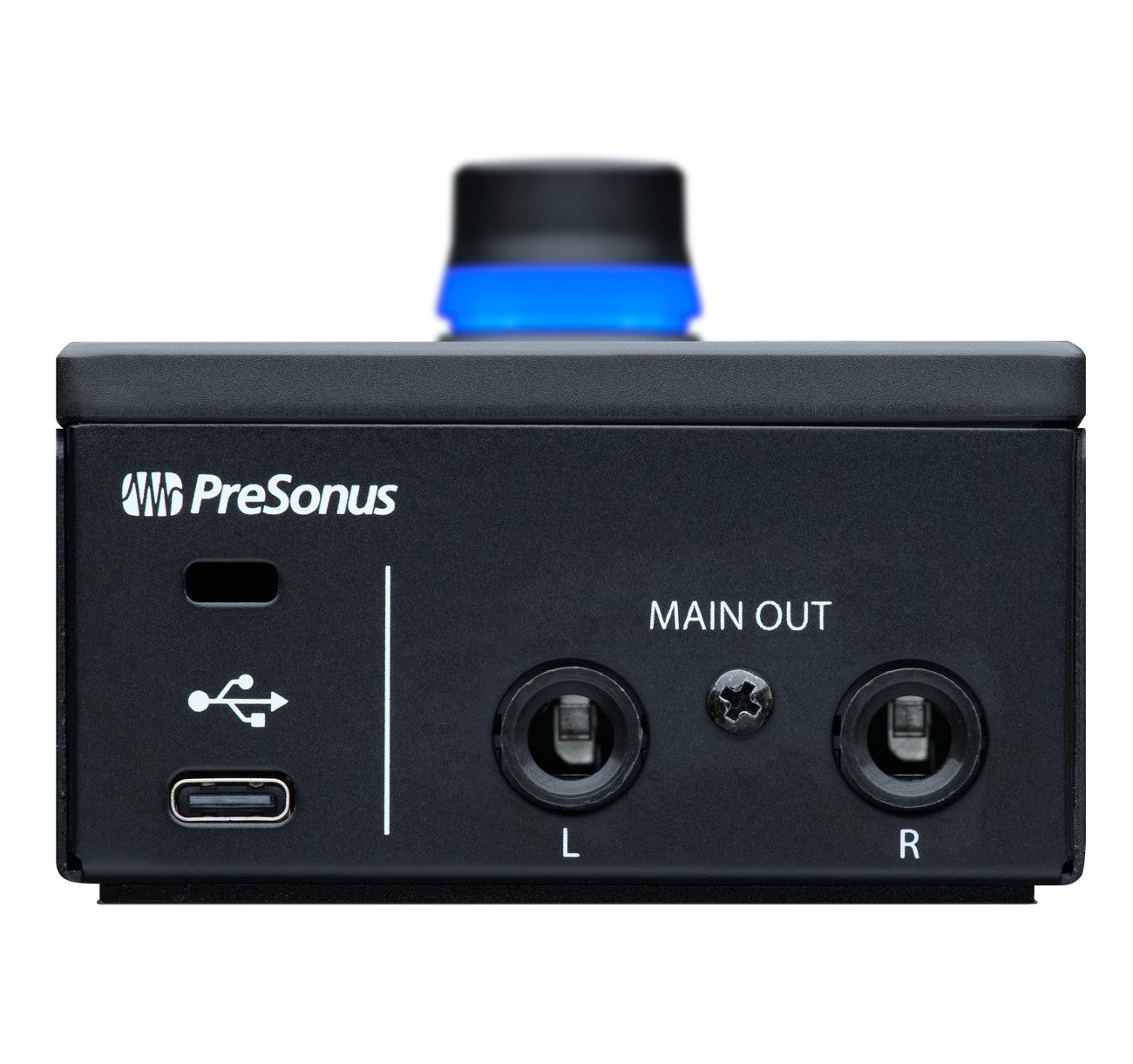

• Main Outputs
  • Type: 1/4" TRS female
  • Frequency Response (+0.1dB/-0.5 dB, unity gain, unwtd): 20Hz - 20,000Hz
  • THD+N (1 kHz, 0 dBFS, loaded): 0.003%
  • Max. Level: +10 dBu
• Headphone Output
  • Type: 1/8" TRRS female
  • Max. Power: 30mW/Channel @56Ω
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20Hz - 20,000Hz
  • Impedance Working Range: 32 Ω to 300 Ω
• Audio Interface
  • Type: USB-C® Compatible USB 2.0
  • Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Bit Depth: 24 bit
  • ADC Converter Range: 96 dB
  • DAC Converter Range: 96 dB
• Controls
  • Hardware: Direct Monitor, Mic Gain, Line Input Trim, Headphone Level, Mute, Preset Select, HPF
  • Software: Mic Gain, Monitor Mix, Preset Management, Loopback Mixes
  • Onboard DSP Options: PreSonus StudioLive Fat Channel Processing High Pass Filter, Noise Gate / Expander, 3 Compressor models, 3 EQ models, and Limiter, Reverb
  • Loopback Mixer: 7 input digital mixer, 3 stereo loopback mixes, stereo monitor mix
  • Voice Effects: Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay
• Dimensions (HxDxW)2.3" x 3" x 5.35"
• Weight0.78 pounds
