PTZOptics Link 4K Dante-Enabled PTZ Camera

The PTZOptics 4K Link offers built-in auto-tracking at 4K at 60fps (1080p at 60fps over SDI) and features Dante AV-H™ and a built-in tally light. Available outputs include SDI, HDMI and USB for unrivaled performance and versatility. Compatible with most video production software, including OBS, vMix, Wirecast and more.

PTZOptics Link 4K Features

• 72.5° (12X) or 60.7° (20X) or 59.2° (30X) horizontal field of view
• High performance in low light scenarios with Wide Dynamic Range
• Ultra HD 3840x2160p resolutions up to 60 FPS
• 3D noise reduction with our latest low noise CMOS sensor
• Serial (RS232 & RS485) & IP control (LAN/WAN)
• H.264, H.265, & MJPEG video compression when IP streaming
• USB 2.0, HDMI 2.0 / 3G-SDI (HDMI & SDI are not simultaneous)
• PoE+ (Power over Ethernet) or 12VDC power supply
• Beamforming microphone
• AI Video based auto tracking
• Dante AV-H™ (Limited to 1080p60)
• Built in tally light
• Photobooth capable
• 5-year warranty

• Link 4K Dante-Enabled PTZ Camera1
• AC Power Supply 1
• USB A-A Cable1
• RS232C Cable1
• Quick Start Guide1
• IR Remote1
• AA Batteries2
• Five Year Warranty1

• Image Sensor & Lens
  • Video Sensor
  • 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M
  • 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
  • Resolution and Frame Rate
    • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    • SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
  • Lens Zoom
    • 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
    • 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95
    • 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19.
  • Field of View
    • 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
    • 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
    • 30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
    • Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
    • Shutter: 1/30s ~ 1/10000s
• Pan/Tilt Movement
  • Pan Movement: ±170°
  • Pan Speed: -1.7° ~ 100°/s
  • Tilt Movement: -30° ~ +90°
  • Tilt Speed: 1.7° ~ 69.9°
  • Presets: 255 Presets
  • Preset Accuracy: 0.1°
  • Image Flip, Mirror and Freeze: Supported
• Electrical Index
  • Power Supply: DC 12V / PoE+ (802.3at)
  • Input Power: 18W (Max)
• Physical
  • Material: Aluminum, Plastic
  • Color: Black, White
  • Dimensions (WxDxH)
    • 12x and 20x: 5.57x5.94x6.93” (7.91” with tilt up), 141.5x151x176mm (201mm with tilt up)
    • 30x: 6.69x7.12x8.98”, 170x181x228mm
  • Weight
    • 12x and 20x: 3.25 lbs (1.47 kg)
    • 30x: 4.41 lbs (2.0 kg)
  • Working Environment: Indoor
  • Operating Temperature: 14°F ~ 104°F (-10°C to 40°C)
  • Storage Temperature: -40°F ~ 140°F (-40°C to 60°C)

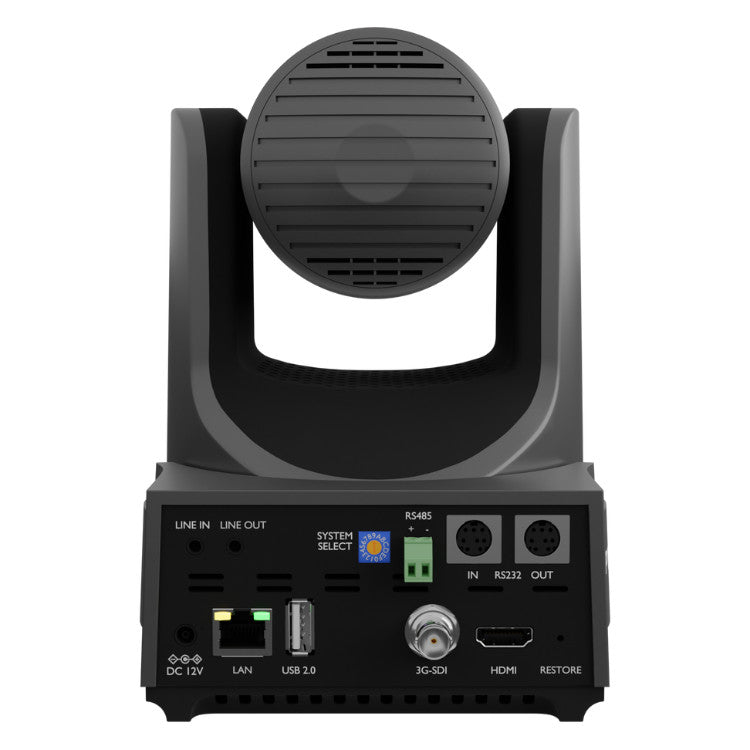

• Rear Board Connectors
  • HD Video Output
    • 1x RJ45: 10/100/1000M Adaptive Ethernet Port
    • 1x HDMI: version 2.0
    • 1x USB 2.0: type A
    • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
  • Audio Interface: 1x 3.5mm Line level Input
  • Communication Interface
    • 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
  • IR: 4x IR addresses, max distance 30ft / 9m
  • Power Jack: JEITA type (DC IN 12V)
