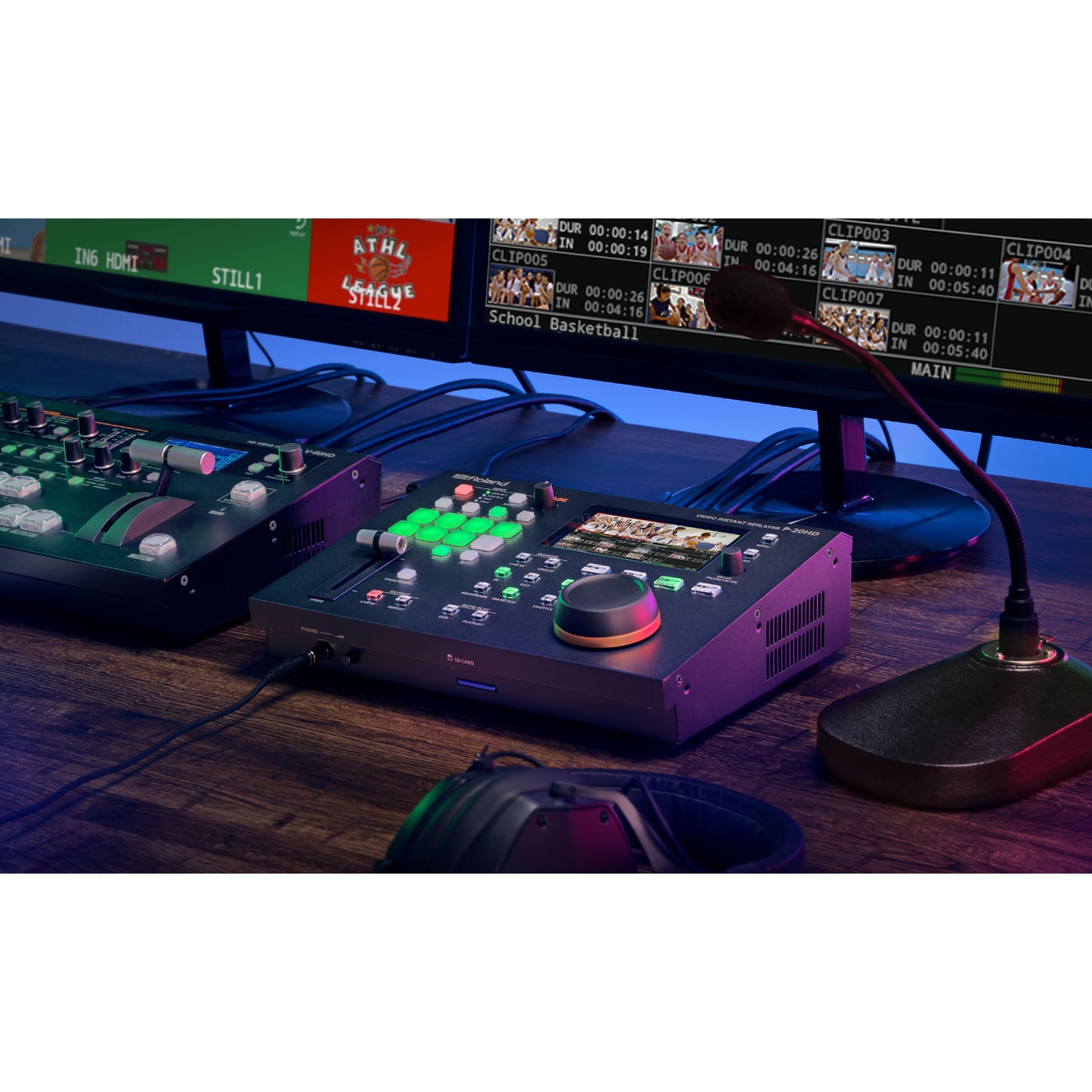

Roland P-20HD Video Instant Replayer

Until now, creating slow-motion instant replays in live sports productions has required an arsenal of complicated and expensive gear—and the knowledge to run it all. Roland’s P-20HD changes all that, providing an affordable and easy-to-use solution that lets you bring pro replay capabilities to any production setup. Offering seamless integration with most Roland A/V switchers and HDMI camcorders and cameras, the P-20HD transforms everyday sports video productions into edge-of-seat fan experiences.

With the P-20HD, adding the magic of instant replay to your workflow has never been more simple and affordable. Using intuitive controls and the integrated color LCD, you can easily cue up replays of important action to let fans relive the moment, either on your streaming feed or live event screens—or both at once.

The P-20HD records directly to high-capacity SD cards, which are widely available and easy to swap out. And as you cue up and replay clips, the game keeps recording in the background, with no gaps in the action. The P-20HD can be seamlessly inserted into a variety of workflows. Use it on its own, or upstream or downstream of any Roland video switcher. Connect two cameras and switch/composite between sources to capture them for replay. Both HDMI inputs feature built-in scalers, providing worry-free connectivity with nearly any video source.

Roland P-20HD Features

• Slow-motion instant replay and variable speed playback
• Intuitive controls for single-operator sports production
• Simultaneous recording and playback
• Clip playlist builder for creating highlight reels
• Integrated color LCD for preview monitoring
• Capture long events to low cost and widely available SD cards
• Compact, portable, and reliable hardware design
• Ideal for school sports, esports, and sports training

• P-20HD Video Instant Replayer1
• Owner's Manual1
• AC adaptor1
• Power cord1

• VIDEO
  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
  • Input Connectors: INPUT 1--2: HDMI type A x 2 (* Multi-format Supported)
  • Output Connectors
    • MAIN: HDMI type A (* Multi-format Supported)
    • PREVEW: HDMI type A
  • Input Formats
    • 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz), WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz), SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz), UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
    • * The refresh rate is the maximum value of each resolution.
    • * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
    • * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
    • * 1920 x 1200/60 Hz: Reduced blanking
  • Output Formats
    • MAIN:
      • 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
      • * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
    • PREVIEW:
      • 1080/59.94p, 1080/50p
      • * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
    • Still Image:
      • Bitmap File (.bmp) 1920 x 1080 pixels, 24-bit color, uncompressed.
      • PNG File (.png) 1920 x 1080 pixels (480 x 270 pixels for title image), 24-bit color, 8-bits alpha channel.
      • * It can be stored up to 16 files in each Projects.
      • * It can be stored one title image each for LIVE IN and REPLAY bus.
  • Recording mode
    • Instant Replay Mode
    • file format: MPEG2-TS
    • CODEC: H.264 High@L.4.1 10Mbps 8bit 4:2:0
    • AAC LC 128kbps, 48kHz, 16bit stereo
    • recording mode: resolution priority, framerate priority
    • * It can be selected at project settings.
    • Recording media: SD/SDHC/SDXC card
    • Video Effects
      • Composition: PinP, SPLIT
      • Transition: CUT, MIX, WIPE
      • Other: Flip horizontal, Still Image Playback, Test pattern output, Annotation
• AUDIO
  • Audio Processing: Sample rate: 24 bits/48 kHz
  • Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
  • Input Connectors
    • INPUT 1--2: HDMI Type A x 2
    • AUDIO IN: RCA phono type
  • Output Connectors
    • MAIN OUT: HDMI Type A
    • PREVIEW OUT: HDMI Type A
    • AUDIO OUT: RCA phono type
    • PHONES: Stereo 1/4-inch phone type
  • Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
  • Input Impedance: AUDIO IN: 15 k ohms
  • Output Level
    • AUDIO OUT: -10 dBu (Maximum: +8 dBu)
    • PHONES: 92 mW + 92 mW (32 ohms)
  • Output Impedance
    • AUDIO OUT: 1 k ohm
    • PHONES: 10 ohms
  • Audio Effects: Delay, High pass filter, Compressor, Noise gate, Equalizer, Limiter, Test tone output
  • Audio Player: File format: WAV (Linear PCM, 48kHz/48kHz, 16bit, stereo (* It can be stored up to 16 files in each Projects.)
• OTHERS
  • Other Connectors
    • USB HOST port: USB A type (For USB flash drive, Wacom tablet, USB keyboard)
    • LAN port: RJ-45, 1000BASE-T (For remote control, FTP)
    • RS-232 connector: DB-9 type (Male, for remote control, switcher control)
    • CTL/EXP 1, 2: 1/4-inch TRS phone type
    • DC IN
  • Other Functions
    • Panel lock function
    • EDID Emulator
    • Export recording files (mp4)
    • Export and Import project archive files
  • Display: 4.3 inches TFT Color LCD: 480 x 272 dots
  • Power Supply: AC adaptor
  • Current Draw: 3 A
  • Power Consumption: 36 W
  • Operation Temperature: +32 to +104 degrees Fahrenheit (+0 to +40 degrees Celsius)
  • Dimensions (WxDxH): 10-7/16x8-9/16x3-7/16” (265x216x87mm)
  • Weight (excluding AC adaptor): 4 lbs 11 oz (2.1 kg)
  • Notes: * 0 dBu = 0.775 Vrms
