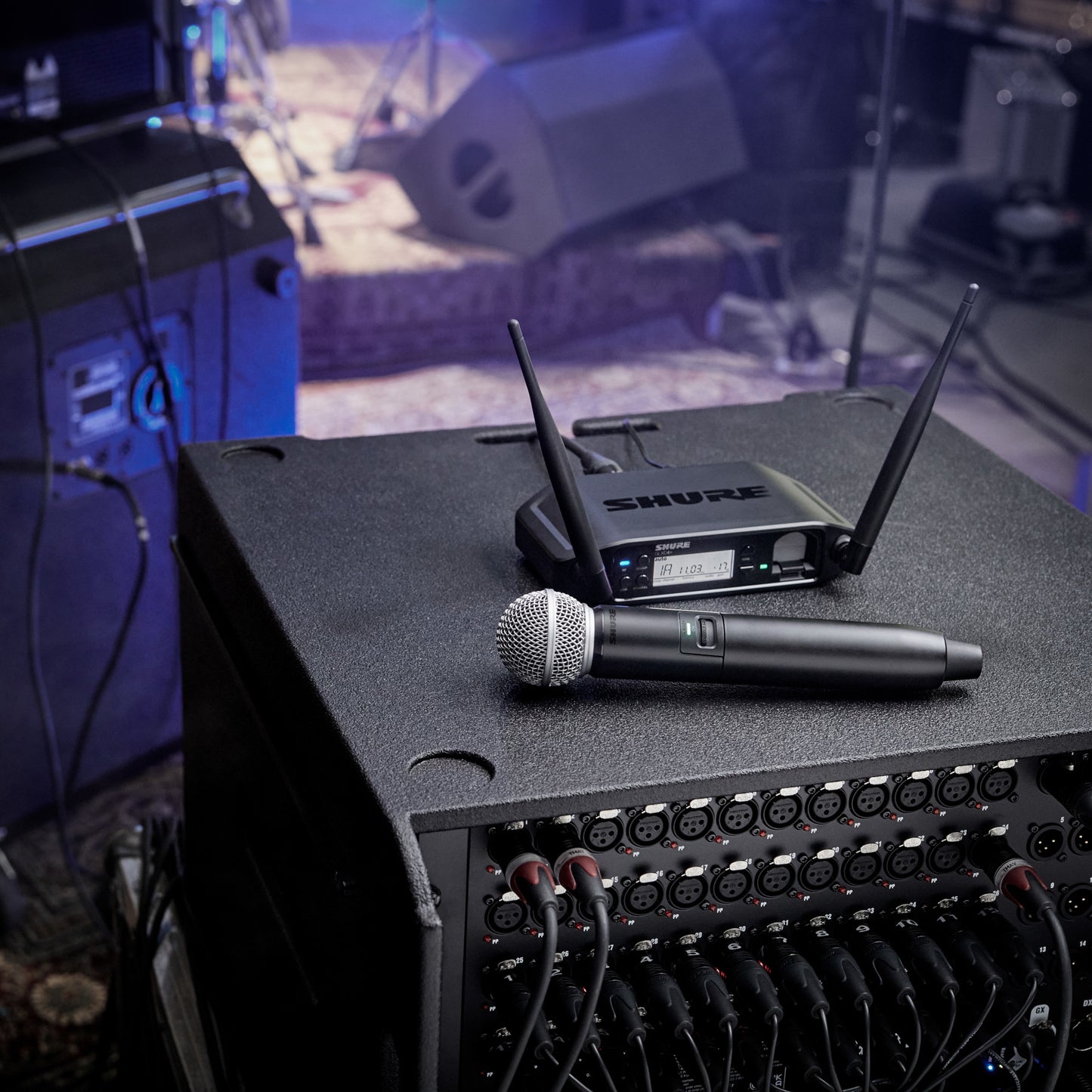

Shure GLXD4+ Dual Band Wireless Receiver

The new GLXD4+ Dual Band Tabletop Receiver delivers exceptional digital audio clarity. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance. Go wireless without complication.

More about Shure's GLXD+ Series

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance.

With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.

Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

Shure GLXD4+ Dual Band Wireless Receiver Features

• Wireless Tabletop Receiver
• Delivers exceptional digital audio clarity
• Automatic frequency management
• Dual Band Technology
• Provides reliable, consistent performance
• Comes with PS43 Power Supply

• GLXD4+ Digital Wireless Receiver1
• PS43 Power Supply1

• Dimensions (HxWxD)7.2x4.8x1.6" (182.8x121.97x40.3 mm), antennas folded
• Weight 10.9 oz (310g)
• Housing Molded Plastic
• Power Requirements 14.5V - 17V, 600mA
• Spurious Rejection >35 dB, typical
• Gain Adjustment Range -20 to 40 dB in 1 dB steps
• Phantom Power Protection Yes
• Configuration
  • XLR Output: Impedance Balanced
  • 6.35 mm (1/4“) output: Impedance Balanced
• Impedance
  • XLR Output: 100Ω
  • 6.35 mm (1/4“) output: 100Ω (50Ω, Unbalanced)
• Maximum Audio Output Level
  • XLR connector (into 600 Ω load): 1dBV
  • 6.35 mm (1/4“) connector (into 3 kΩ load): +8.5 dBV
• Pin Assignments
  • XLR Output: 1=ground, 2=hot, 3=cold
  • 6.35 mm (1/4“) connector: Tip=audio, Ring/Sleeve=ground
• RECEIVER ANTENNA INPUT
  • Impedance 50Ω
  • Antenna Type Dual Band 1/2 Wave Sleeve Dipole, non-removable
  • Maximum Input Level −20 dBm
