Shure UA864 Wall-Mounted Wideband Antenna
Shure UA864 Wall-Mounted Wideband Antenna

Shure UA864 Wall-Mounted Wideband Antenna

(No reviews yet)
SoundPro Item: 24415
MSRP: $678.00
Add to Wish List

Account manager
Have a Question? Ask an Account Manager

The UA864 antenna provides wideband RF coverage in a low-profile enclosure that easily mounts on a wall or ceiling. The neutral white housing allows the antenna to blend into corporate or classroom settings, and is paintable to match interior colour schemes. The 4-position selectable gain switch provides attenuation and boost settings to optimise the antenna performance for varying transmitter distances and cable run lengths.

Shure UA864 Features

  • Up to 100 degrees coverage pattern (3dB beam width, region dependent)
  • Four-position RF gain switch with pad/boost (-20, -10, 0, +10 dB)

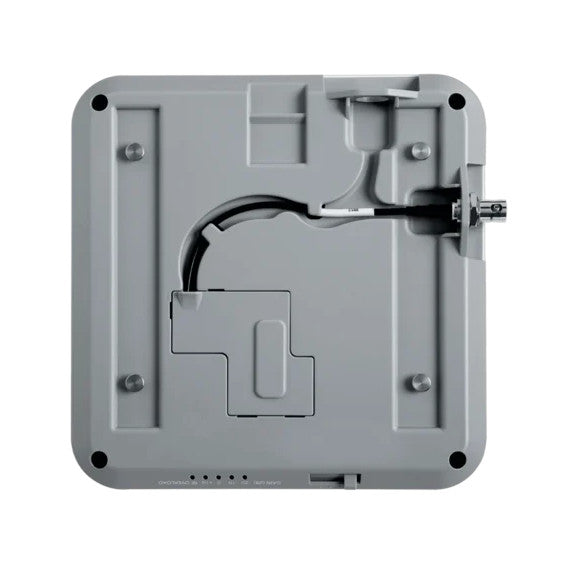

  • Attached BNC cable for surface or through-wall cable routing options
  • Low-profile design
  • Metal surface mounting capability
  • Neutral white, paintable housing
  • Cable can be routed out two different sides of the wideband antenna to accommodate different mounting setpus
  • UA864 wall-mounted wideband antenna1
  • Connector typeBNC, female
  • Impedance50Ω
  • Power requirements10 to 15 V DC bias from coaxial connection 75mA
  • RF frequency range470-698 MHz
  • Reception pattern100° (3dB beam width at center frequency)
  • Third-order overload intercept point (OIP3)>30dBm
  • Antenna gain2.5dBi (on axis, 0dB gain setting at center frequency)
  • Signal gain+10 dB0 dB−10 dB−20 dB (+/-1dB, switchable)
  • RF overload LED threshold-15dBm
  • Operating temperature20°F to 120°F (-7°C to 74°C)
  • Dimensions (HxWxD)6.93" x 6.93" x 2"
  • Weight1.07 pounds (487 g)

In The Box

Shure UA864 Wall-Mounted Wideband Antenna
