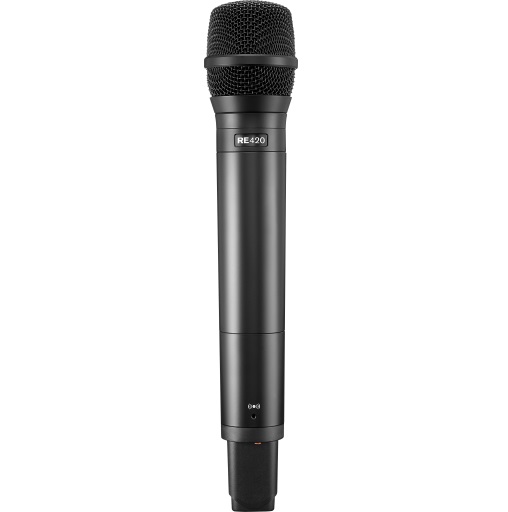

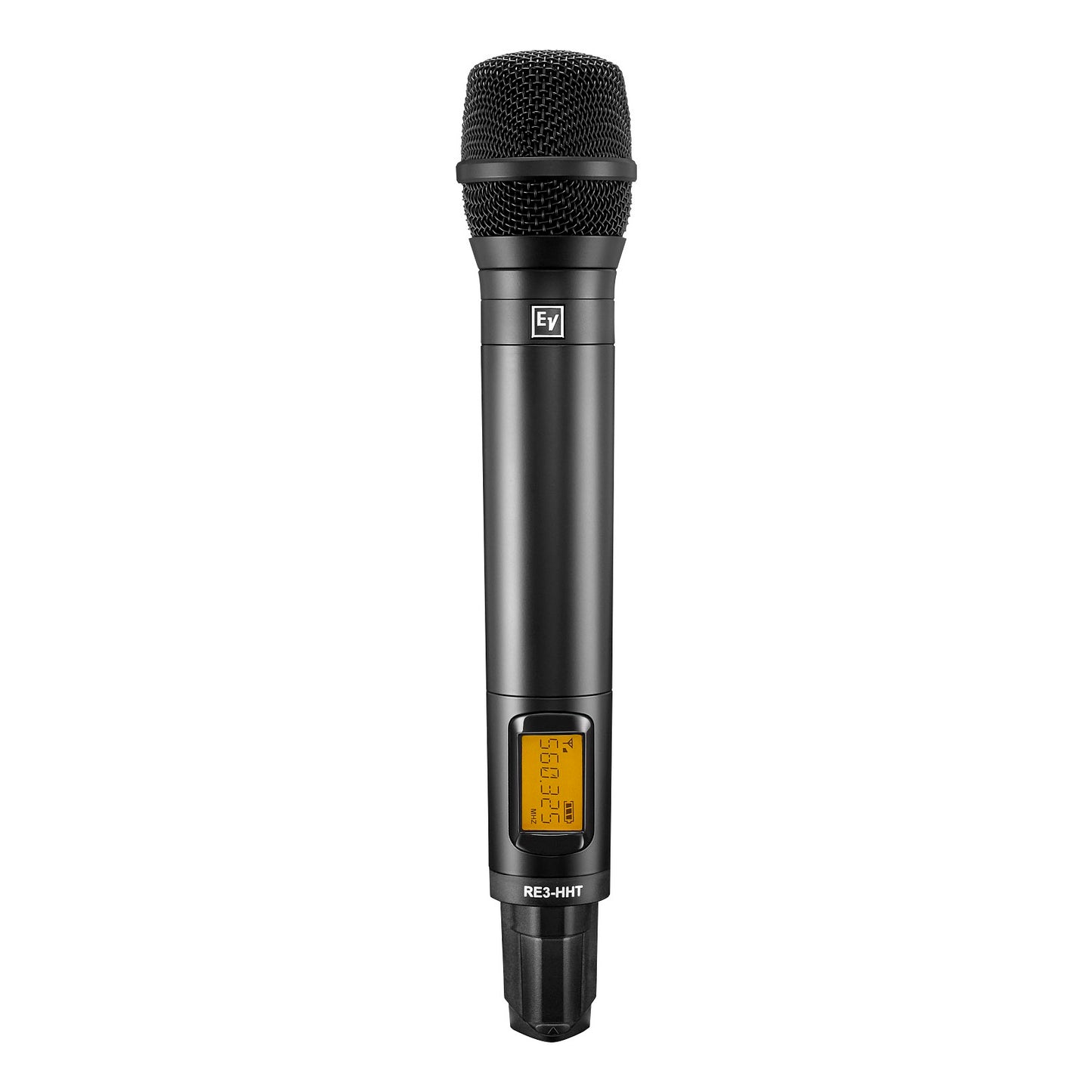

Handheld UHF wireless transmitter featuring RE420 condenser cardioid microphone head for vocal performance and presentations. The RE420's sound is rich, detailed and full-bodied, with a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.
The transmitter pairs perfectly with the RE3-RX diversity receiver. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Electro-Voice RE3-HHT420 Features
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Common threaded coupling allows microphone head interchangeable
- RE3-HHT Handheld Transmitter1
- RE420-RC3 Microphone Head1
- Microphone Stand Adapter1
- AA Batteries2
- Engineering Data Sheet1
- Warranty Card1
- Declaration of Conformity1
- Frequency Oscillation ModePhase-locked loop (PLL)
- Sync Frequency Ultrasonic
- Display By LCD + LED
- Function Controls Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
- RF Stability <±10kHz@Fc
- Modulation Frequency Shift
- Wideband FM
- ±48kHz deviation
- Harmonic Radiation <-50dBc
- Battery 2 x AA alkaline battery or NiMH rechargeable battery
- Charging Contacts Yes
- Microphone Coupling 1.25” diameter, 28 UN-2A thread pitch
- Microphone Electrical Contact 3-ring/3-pin
- Finish Black polyurethane paint
- Dimensions (without head)
- Height: 7.52 inch (191mm)
- Width at threaded end: 1.46 inch (37mm)
- Width at control cover: 0.856 inch (22mm)
- Net Weight: (without head): 12.2oz [346 grams]
- Gross Weight (without head): 16.9oz [480 grams]
