Marshall CV730 features a 30x optical zoom block and flexible 12GSDI/HDMI/IP simultaneous outputs with crystal clear UHD images up to 3840x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.
Featuring 12GSDI, HDMI2.0, and IP simultaneous outputs from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.
Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.
Install one-cable to camera for all functions (power, control, audio, video), or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.
Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Marshall CV730 Features
- 8.5 Megapixel UHD Sensor (1/1.8")
- 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
- 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
- 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs
- 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
- 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
- 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
- 12V Power Supply included and PoE++ (IEEE802.3bt)

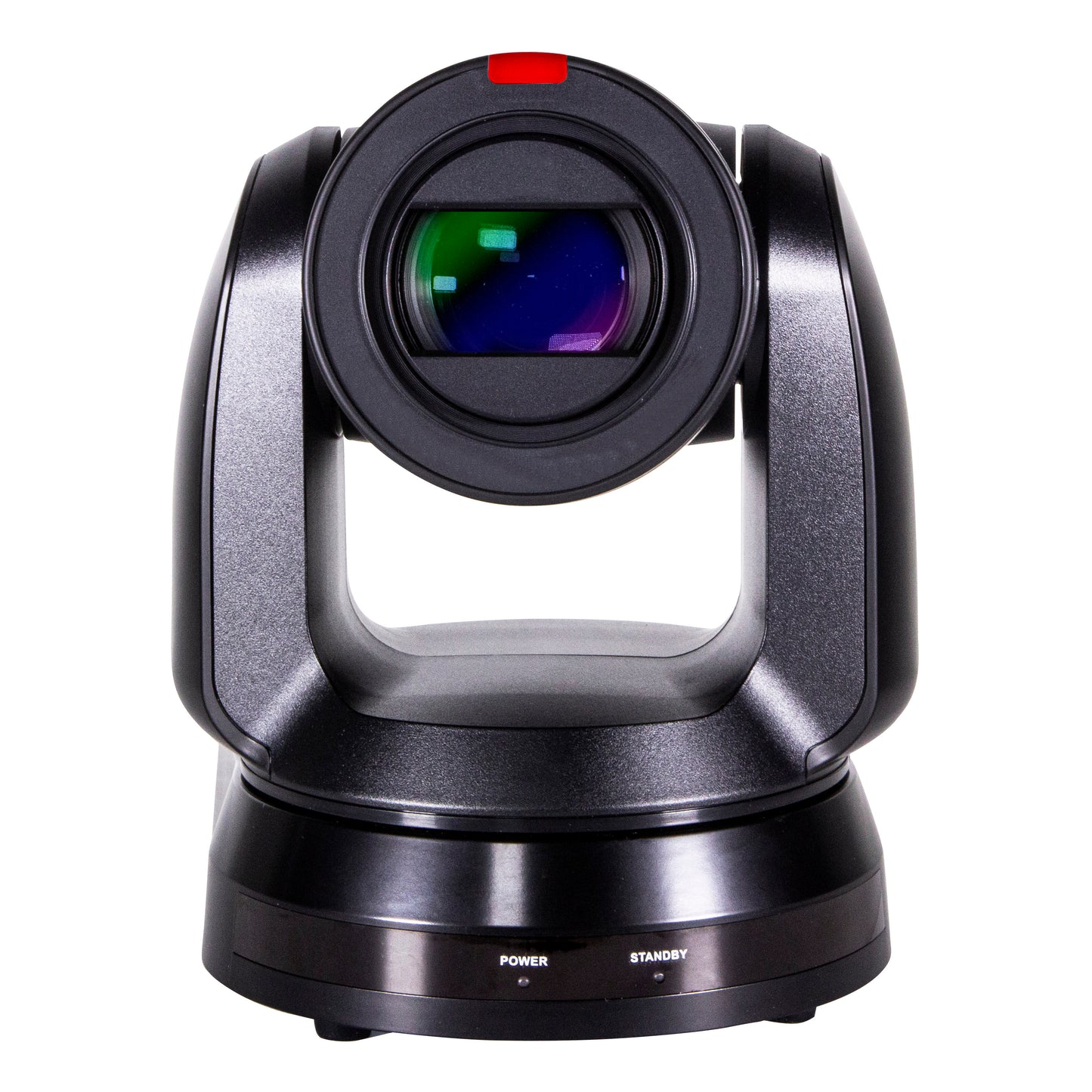

- CV730 UHD60 PTZ 30x Optical Zoom 8.5MP Camera1
- 12V Power Supply1
- IP formatsSRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
- Min. Illumination0.05 lux (F1.6, 50IRE, 30fps)
- ApplicationsThe CV730 is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation.
