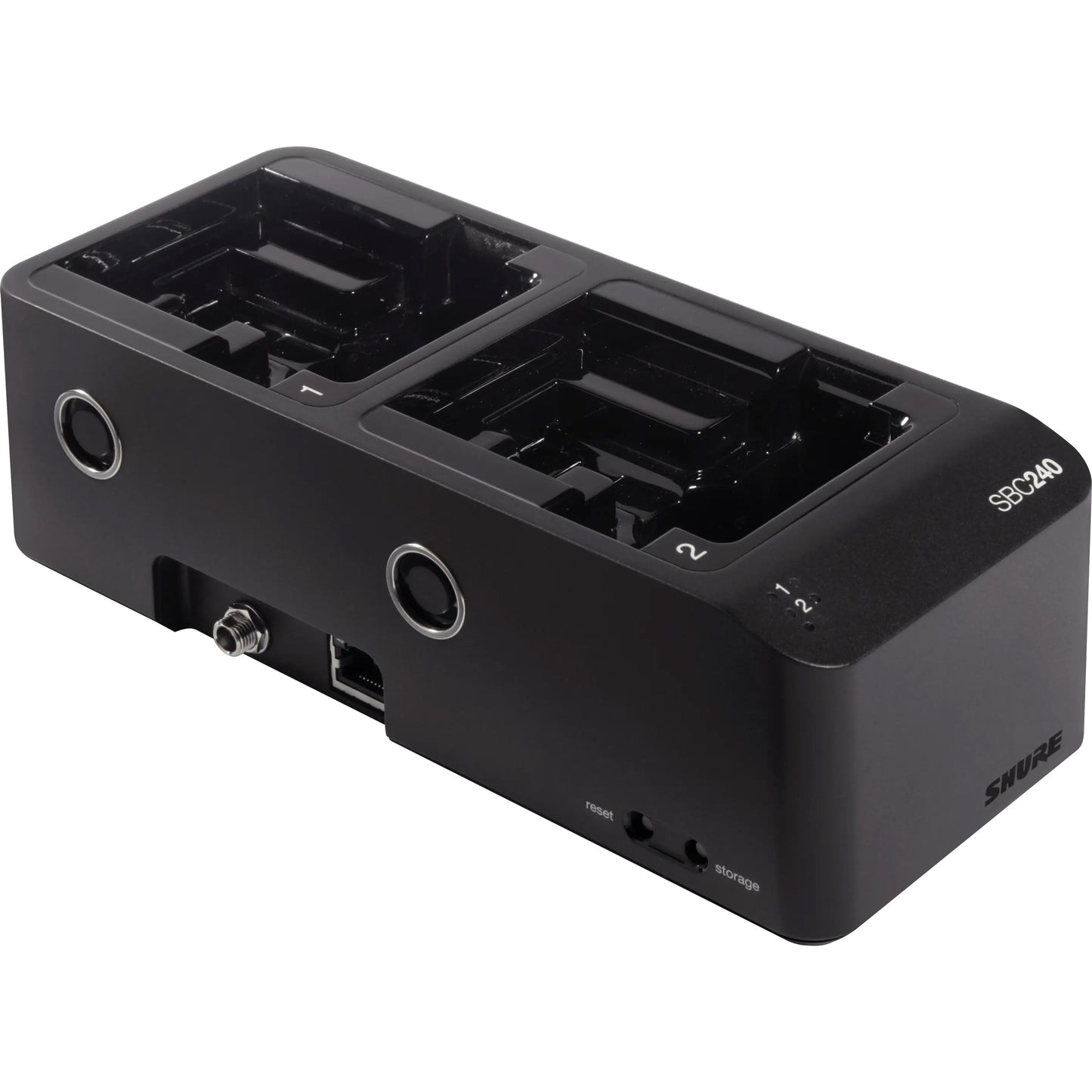

The SBC240 networked docking charger provides a compact charging and storage solution for any combination of 2 SB910/SB920 batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries (all sold separately). The charger is network-enabled to allow for remote monitoring of charger and battery parameters using Shure Wireless Workbench software. Connect up to 4 SBC240 chargers together to share power and network connectivity. Power supply is included.
Shure SBC240-US Features
- Charging for any combination of up to 2 SB910/SB920 batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries
- Connect up to 4 chargers together to share power and network connections and save space
- LEDs indicate charge status and battery errors
- Storage mode to prepare batteries for long-term storage
- Network-enabled for remote monitoring
- SBC240-US Ethernet Charger1
- PS60 Power Supply1
- Allen Wrench1
- Screw1
- Compatible Batteries Up to 2 SB910 or SB920
- Compatible Transmitters Up to 2 ADX1, ADX2, or ADX2FD
- Charge Current 1.25 A maximum
- Charge Time 1 hour = 50% charged; 3 hours = 100% charged
- External Power Supply PS60
- Power Requirement 15 V, 3.33 A maximum
- Housing Molded Plastic
- Dimensions (H x W x D)2.57 x 3.49 x 8.3 inches (65.25 x 88.74 x 210.82 mm)
- Weight 0.45 kg (1 lb) without battery
- Operating Temperature Range -18°C (0°F) to 50°C (122°F)
- Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
- Network Interface 10/100 Mbps Ethernet
- Network Addressing Capability DHCP or Manual IP address
