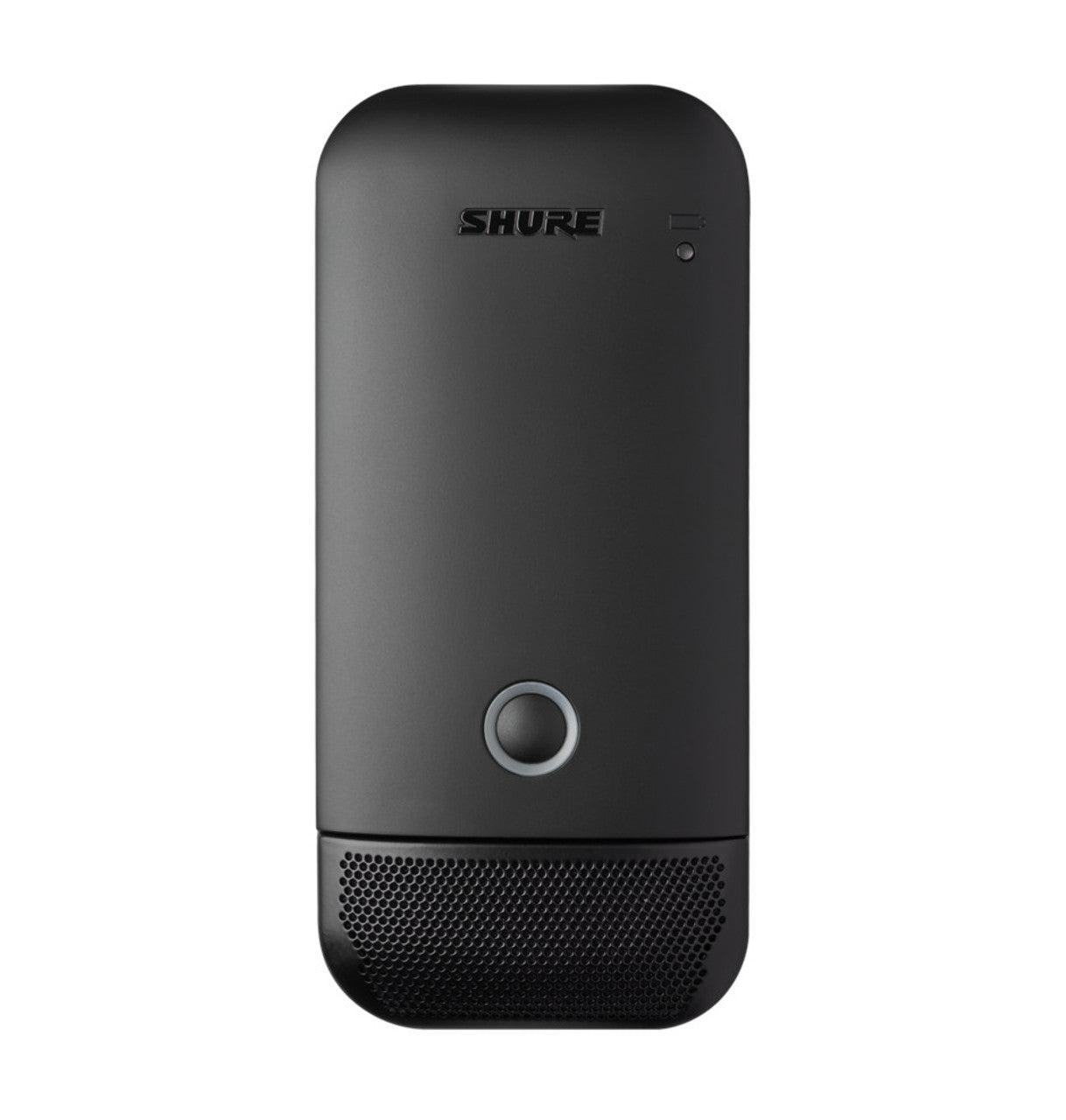

Shure’s ULXD6/O Wireless Boundary Microphone Transmitter’s low-profile design makes it easy to use in meeting and event spaces where wired mics are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Shure ULXD6/O Features
- Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement
- Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
- Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup
- Compatible with ULX-D® and QLX-D® digital receivers
- Optional SB900B rechargeable batteries provide up to 9 hours of runtime
- Compatible with standard AA alkaline batteries
- Optional SBC250, SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
- Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
- Adjustable RF power, high-pass filter, and power lock settings
- ULXD6/O wireless boundary microphone transmitter1
- Gain Adjustment Range0 to 21 dB (in 3 dB steps)
- Battery TypeShure SB900B Rechargeable Li-Ion or AA batteries 1.5 V
- Battery Runtimeapprox. 8.5 hours
- Dimensions (HxWxD)4.48" x 2.43" x 1.35"
- Weight8.5 oz
- Operating Temperature Range32°F to 113°F (0°C to 45°C)
- Housingmolded plastic
- Antenna Typeintegrated PIFA
- Impedance50Ω
- Occupied Bandwidth<200kHz
- Audio Frequency Response50Hz to 17kHz (varies with capsule)
- Modulation TypeShure proprietary digital
- Power1mW, 10mW, 20mW
More about ULX-D Digital Wireless Systems
Shure’s ULX-D® Digital Wireless series offers secure, scalable, and durable systems for large installations such as conferences and conventions. Get wireless coverage for your entire campus. From managing diverse sound sources, to protecting RF from smartphones and interferences from other stray signals, ULX-D delivers an intelligent, unique solution to wireless problems of all shapes and sizes.
Discover solutions to meet your wireless needs when you browse SoundPro’s ULX-D Series and Shure Wireless Systems pages.
