dbx AFS2 2-Channel Advanced Feedback Suppression Processor

The AFS2 Advanced Feedback Suppression processor has been completely re-designed to take the foundation of the best selling AFS224 and bring it to the next level. The AFS2 now offers the highly-intuitive Wizard function that takes all of the guesswork out of setting up any room. The AFS2 also incorporates a completely re-designed Advanced Feeback Supression module. Best of all, the AFS2 now provides the user with a full LCD display setup and monitoring.

With its powerful DSP module, the AFS2 provides all the processing and control necessary for both installation and live use. Ten and twelve filter feedback elimination processors are the de facto standard, but the AFS2 offers a dedicated feedback suppression processor that offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. To achieve these staggering numbers dbx utilized their improved AFS technology that had previously only been available in the upper echelon line of products and made it available in this stand-alone processor. In addition to the plethora of feedback suppression filters available, the AFS2 also offers selectable modes, live filter lift, and types of filtration, which are all readily available via the intuitive user interface front panel. With all of these state-of-the-art features in place, not only do you hear no evil, but you will now be able to see no evil.

dbx AFS2 Features

• Wizard Setup Function
• Full LCD display
• dbx patented (Advanced Feedback Suppression) AFS™ technology
• 24 programmable filters per channel
• Stereo or dual independent channel processing
• Live and fixed filter modes
• Selectable filter lift times
• Application-specific filter types: speech and music low, med and high input channel metering
• 24 LED per channel filter metering

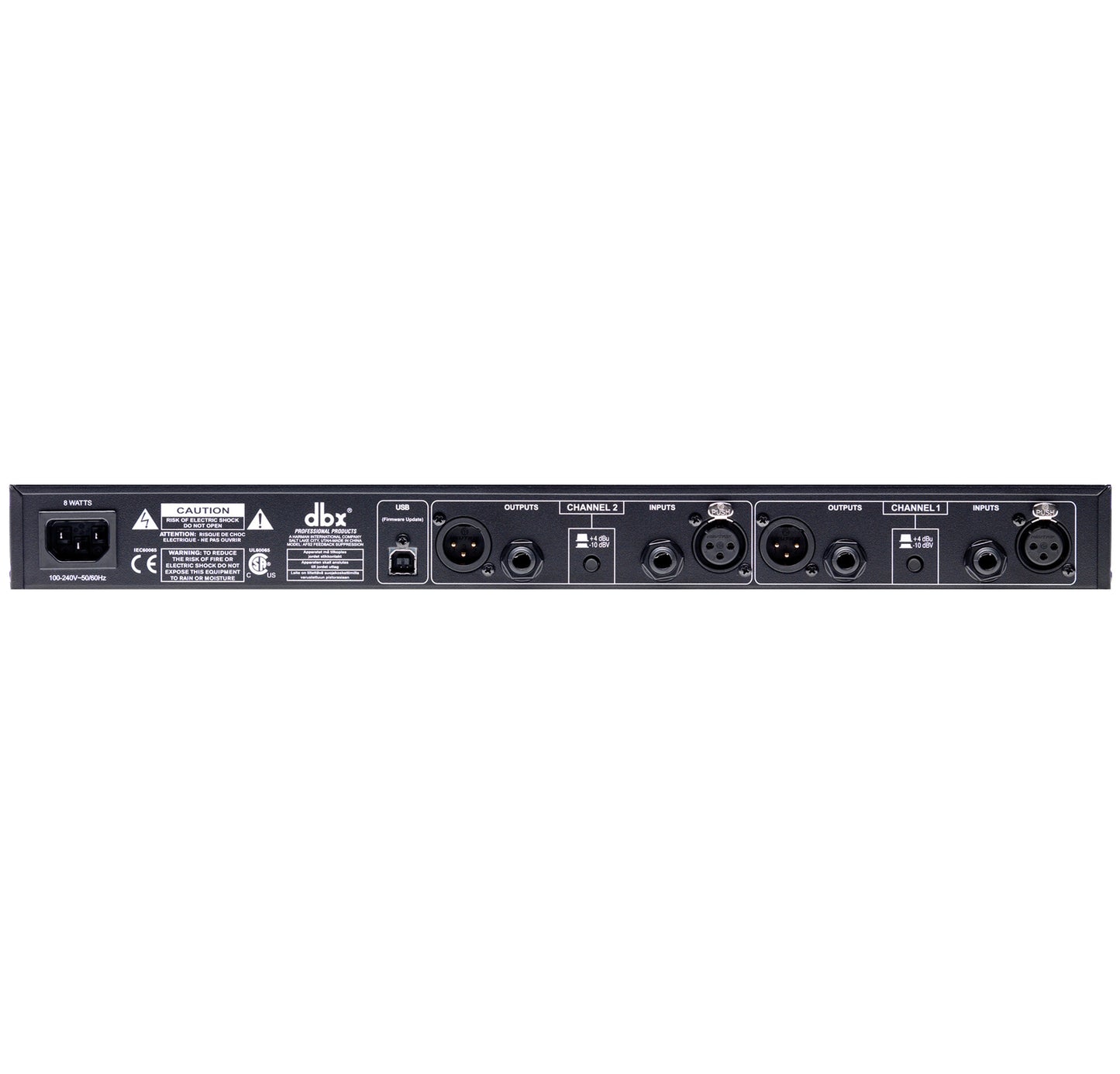

• XLR and TRS inputs and outputs

• AFS2 supression processor1

• Inputs2
• Input connectorsfemale XLR and 1/4” TRS
• Input typeelectronically balanced/unbalanced, RF filtered
• Input impedancebalanced 50kΩ, unbalanced 25kΩ
• Max input line level+20 dBu
• CMRR> 40dB, typically >55dB @ 1kHz
• Outputs2
• Output connectorsmale XLR and 1/4” TRS
• Output typeelectronically balanced/unbalanced, RF filtered
• Output impedancebalanced >120 Ω, unbalanced >60 Ω
• Max output level+20 dBu
• A/D converterType IV™ Conversion System
• A/D dynamic range>113 dB A-weighted, >110 dB unweighted, 22kHz BW
• A/D conversion24-bit
• Sample rate48kHz
• D/A dynamic range112 dB A-weighted, 109 dB unweighted
• D/A conversion24-bit
• Dynamic range109 dB A-weighted, 106 dB unweighted, 22kHz BW
• THD+Noise0.003% typical at +4 dBu, 1 kHz
• Frequency response20Hz – 20kHz, +/- 0.5dB
• Interchannel crosstalk>80 dB typical
• Operating voltage100-120VAC 50/60 Hz
• Power consumption9W
