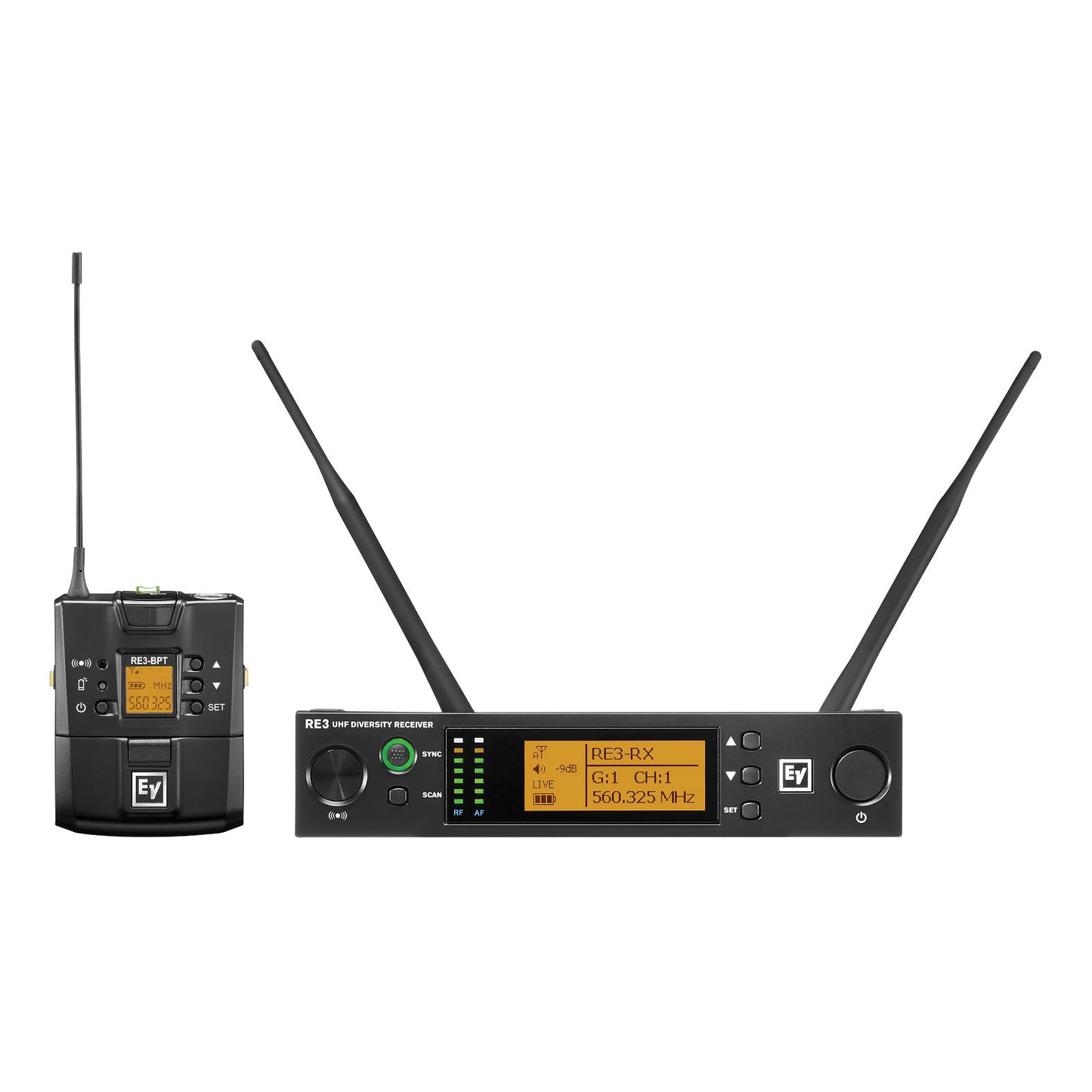

Electro-Voice RE3-BPNID UHF Wireless Set
Electro-Voice RE3-BPNID UHF Wireless Bodypack System

Electro-Voice RE3-BPNID UHF Wireless Bodypack System

SoundPro Item: 39744
MSRP: $568.00

Add to Wish List

Account manager
Contact an Account Manager for your personalized price

The Electro-Voice RE3-BPNID UHF Wireless Bodypack System is comprised of an RE3-BPT Bodypack Transmitter, an RE3-RX Diversity Receiver, and accessories. Serving as an ideal foundation set, it can be completed when coupled with any Electro-Voice lavalier, headworn, or instrument input device.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

Electro-Voice RE3-BPNID System Features

  • Wireless UHF bodypack set
  • Quick and easy setup
  • Rock-solid system performance
  • RE3-BPT Bodypack Transmitter1
  • RE3-RX Diversity Receiver1
  • Two receiver antennas2
  • Universal power supply1
  • Two AA batteries2
  • Receiver rack mounting hardware1
  • Owner's manual1
  • Documentation packet1
  • Declaration of conformity1
  • RE3-BPT Bodypack Transmitter
    • Frequency oscillation mode: Phase-locked loop (PLL)
    • Available band names, tuning bandwidths, and carrier frequency ranges
      • 5L: 36 MHz (488-524 MHz)
      • 5H: 36 MHz (560-596 MHz)
      • 6M: 10 MHz (653-663 MHz)
      • 8M: (823-865 MHz)*
      • T: 3 MHz (803-806 MHz)
      • *8M is split into two segments:
      • 823-832MHz: 9MHz
      • 863-865MHz: 2MHz
    • Sync frequency: Ultrasonic
    • RF power output
      • Frequency band specific: 5L (488-524MHz): Low 10mW / High 50mW
      • 5H (560-596MHz): Low 10mW / High 50mW
      • 6M (653-663MHz): Low 10mW / High 20mW
      • 8M (823-865MHz) 10mW
      • T (803-806MHz): Low 10mW / High 50mW
    • Display by: LCD + LED
    • Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
    • RF stability: <±10kHz@Fc
    • Modulation frequency shift: Wideband FM ±48kHz deviation
    • Harmonic radiation: <−50dBc
    • Input jack: 4-pin mini jack
    • Battery: 2 x AA alkaline battery or NiMH rechargeable battery
    • Charging contacts: Yes
    • Finish: Black polyurethane paint
    • Dimensions (without antenna)
      • Height: 3.2 in. (81.5mm)
      • Width: 2.54 in. (64.5mm)
      • Depth: 0.98 in. (25mm)
      • Net weight: 6.14 oz. (0.174 kg)
      • Gross weight: 8.29 oz. (0.235 kg)
  • RE3-RX Diversity Receiver
    • Frequency Oscillation Mode: Phase-locked loop (PLL)
    • Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
    • Sync Frequency: Ultrasonic 40 kHz
    • Diversity: Antenna diversity
    • Bandwidth: 36MHz
    • Signal/Noise Ratio: >100dB(A)
    • Total Harmonic Distortion (Thd): <0.6%@1kHz
    • Receiving Sensitivity: -81dBm for -12dB SINAD
    • Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
    • Antenna Type: Detachable ½ wave with BNC connector
    • Antenna Booster Power: DC12 - 15V/100mA
    • Function Display By: LCD
    • Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
    • Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
    • Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
    • Audio Frequency Output Level
      • Ref:±22.5kHz Dev@1kHz Tone
      • ¼” (6.3mm) Phone Jack:-10dBV
      • XLR Jack:-4dBV(Line)、-24dBV(MIC)
    • Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
    • Squelch and noise muting: Noise muting and tone code locking
    • Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
    • Power Supply: DC12~15V/500mA
    • Finish: Black polyurethane paint
    • Dimensions
      • Width: 8.27 inch (210mm)
      • Height: (with feet attached) 1.85 inch (47mm)
      • Height: (without feet attached) 1.73 inch (44mm)
      • Depth: (including antenna jack) 6.89 inch (175mm)
      • Depth: (not including antenna jack) 6.1 inch (155mm)
      • Net Weight: 2.71 lbs [1.23 kg]
      • Gross Weight: 3.28 lbs [1.49 kg]

In The Box
